Video: Will It Fade? - UV Fade Resistance Challenge
How does prolonged exposure to intense UV light impact 3D-printed plastics? Will they fade? In this "Will it..." video, Greg Paulsen, Xometry's Director of Application Engineering, 3D printed samples using various additive processes, including FDM, SLS, SLA, PolyJet, DLS, and LSPc, to determine their UV fade resistance.
Watch the video to find out which 3D-printed plastic held up the best after facing extreme UV exposure!
More About This Test
For this video, we used these 3D printable polypanels as our test subject. Here is a list of the processes and materials that were tested:
Fused Deposition Modeling (FDM)
- PLA
- ASA
- ABS-M30
- Polycarbonate
- ULTEM 1010
- ULTEM 9085
Selective Laser Sintering (SLS)
- Nylon 12 Standard
- Nylon 12 Dyed (various colors)

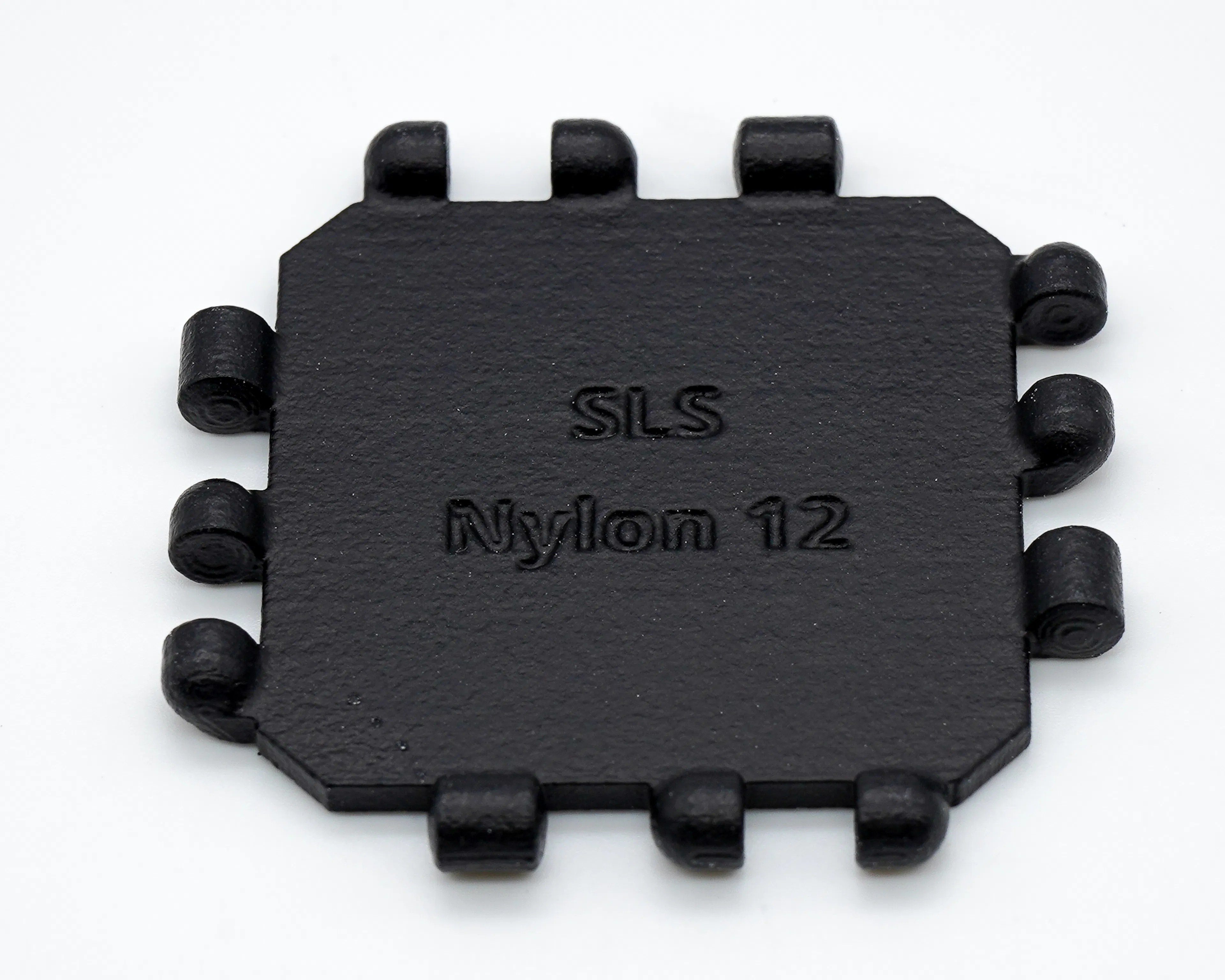

- Nylon 12 Vapor Smoothed and Dyed Black
- Polypropylene
- Nylon 12 Standard
- Nylon 12 Dyed Black
- Accura ABS Black
- Accura ClearVue (standard and quick-clear finish)
- Somos EvoLVe 128
- Accura Xtreme White 200
- Accura 60
- Somos WaterShed XC 11122
- Somos WaterClear Ultra 10122
Lubricant Sublayer Photo-curing (LSPc)
- xMODEL17
- xCERAMIC3280
- UMA 90 White
- RPU 70 Black
- Rigid Clear (VeroClear)
- Rigid Multi-Color (Full-color Texture)
- Multi-Material

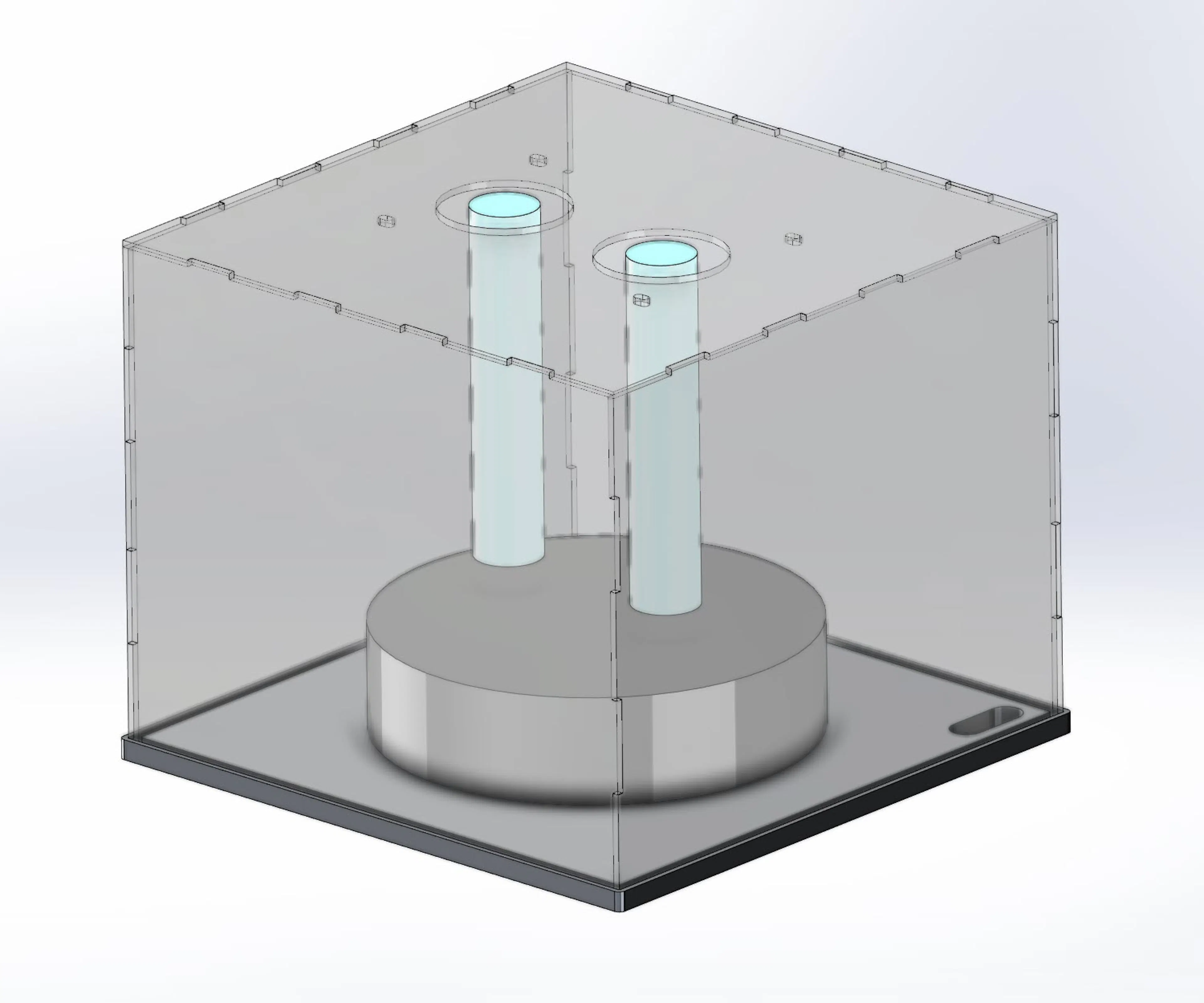

The UV Test Chamber
To perform our UV resistance test, we designed and built a customized chamber to house a powerful UV-C light designed to purify air in HVAC systems. We utilized our Sheet Cutting service to cut the chamber panels from mirrored polycarbonate. To ensure even exposure across the parts, the assembled 3D-printed parts were placed on a turn table inside the chamber.
Part Photo Gallery
In the image gallery below, you'll find a few photos of the poly panels we printed for the test. These photos are BEFORE the experiment. If you want to see how they turned out after the test, be sure to check out the video!
Faded 3D Printed Parts

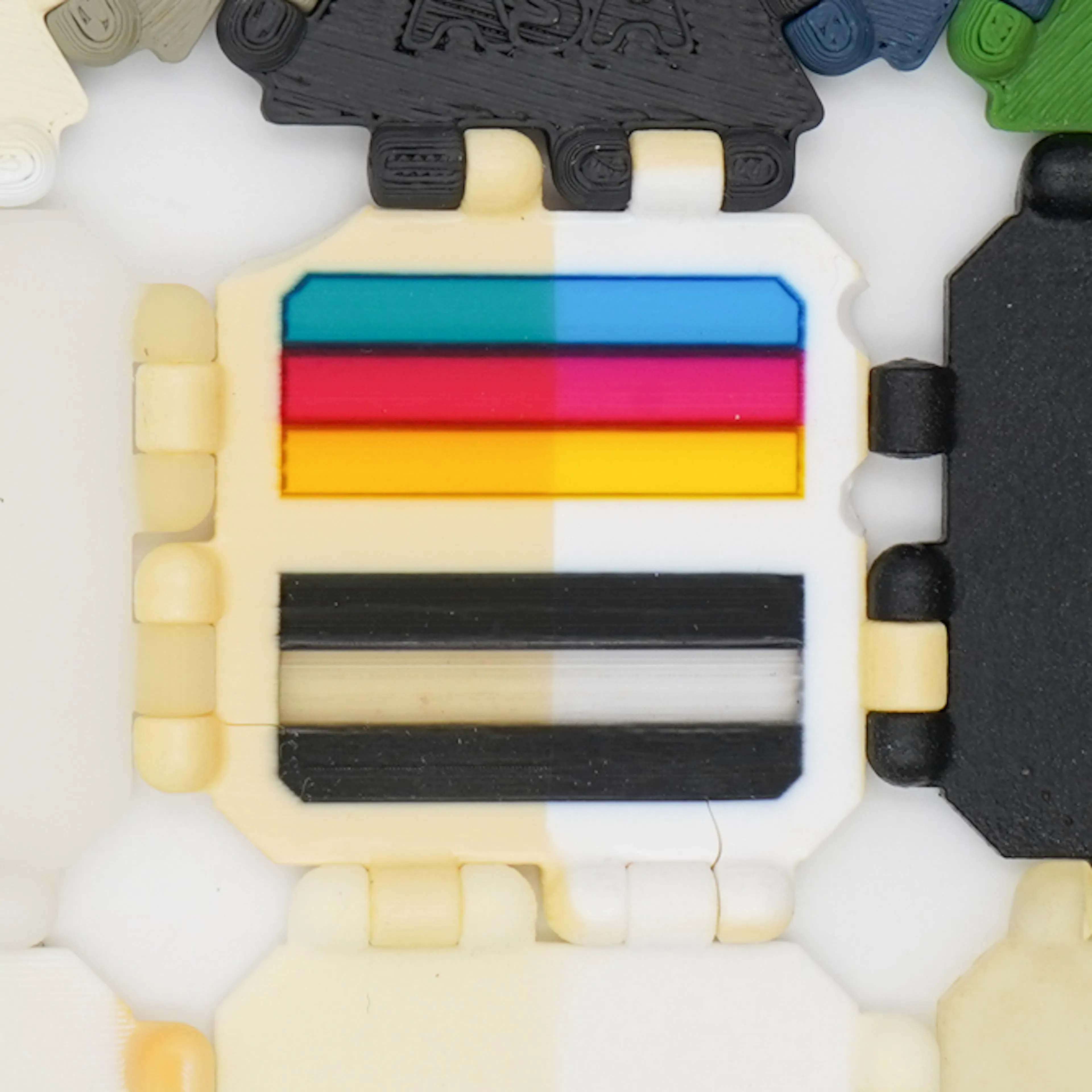

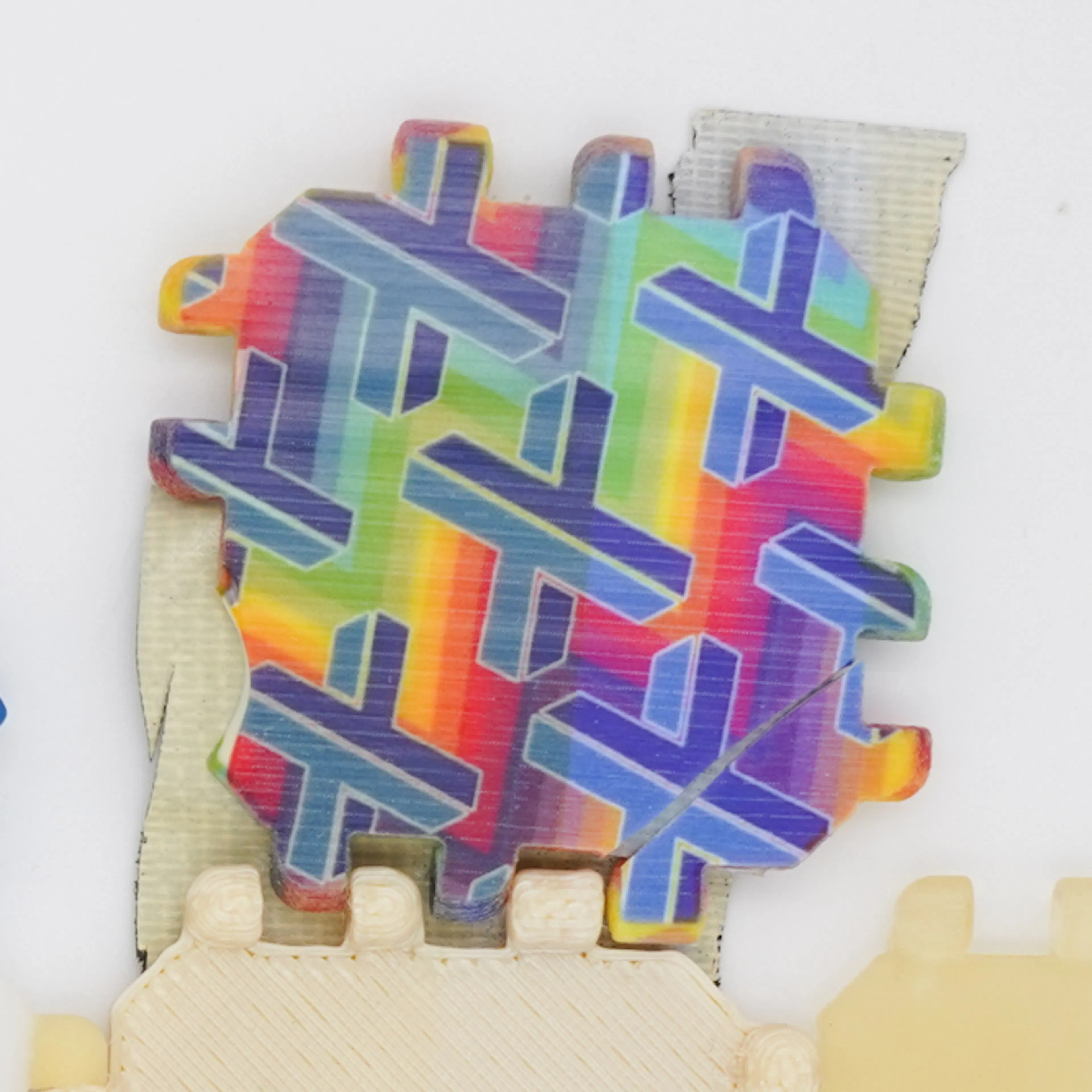

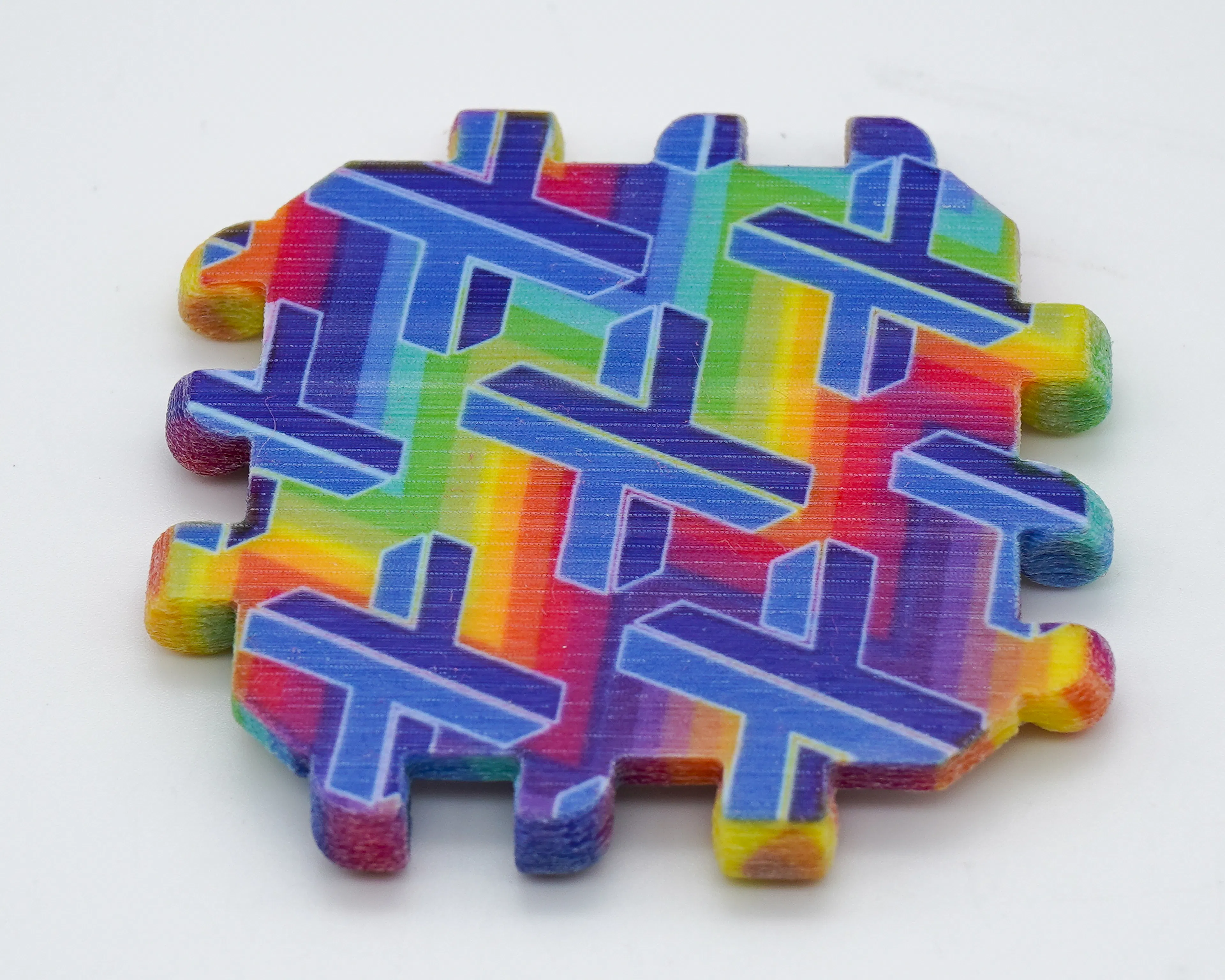

PolyJet Multi-Color
Left - UV Exposed, Right - Control
PolyJet Multi-Material
Left - UV Exposed, Right - Control

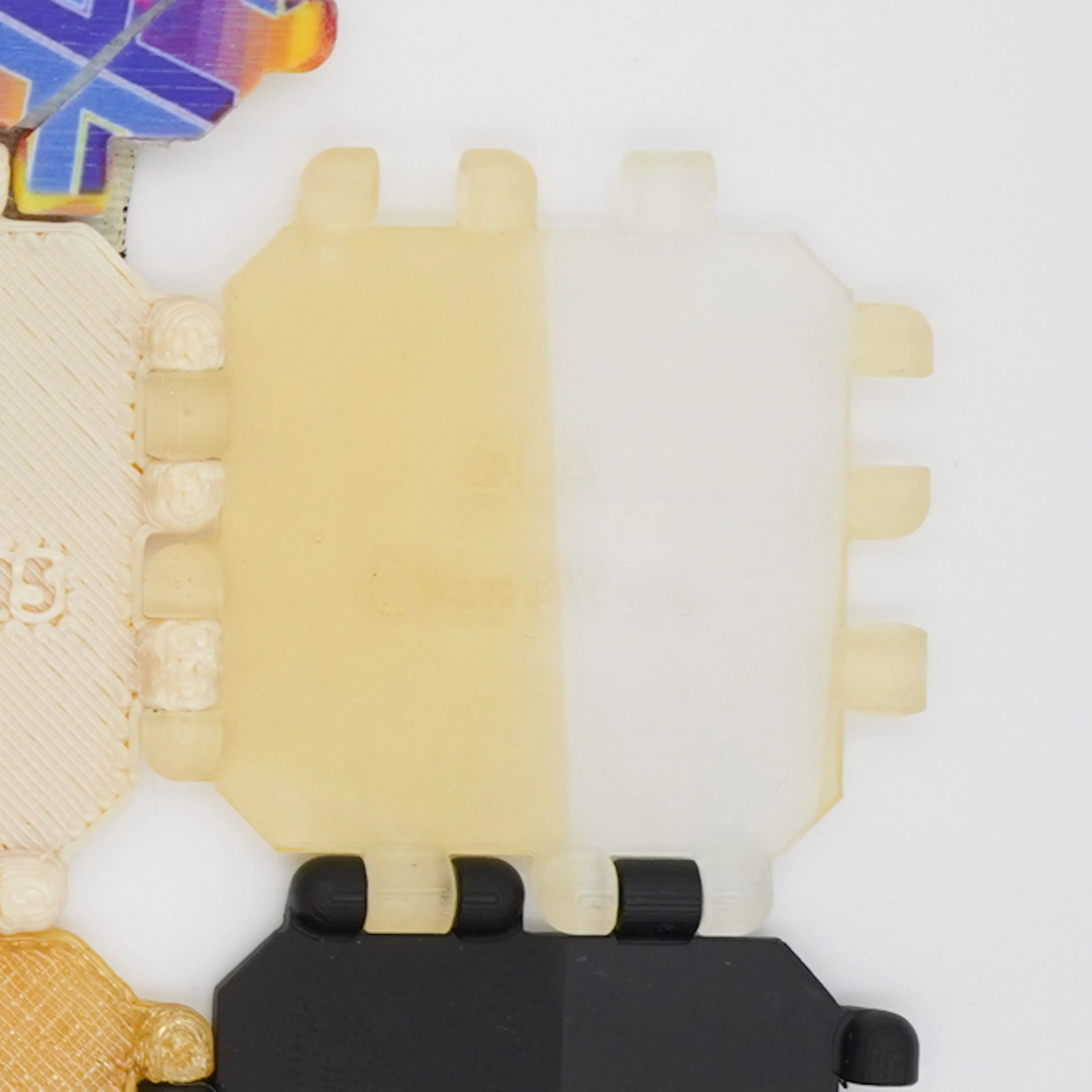

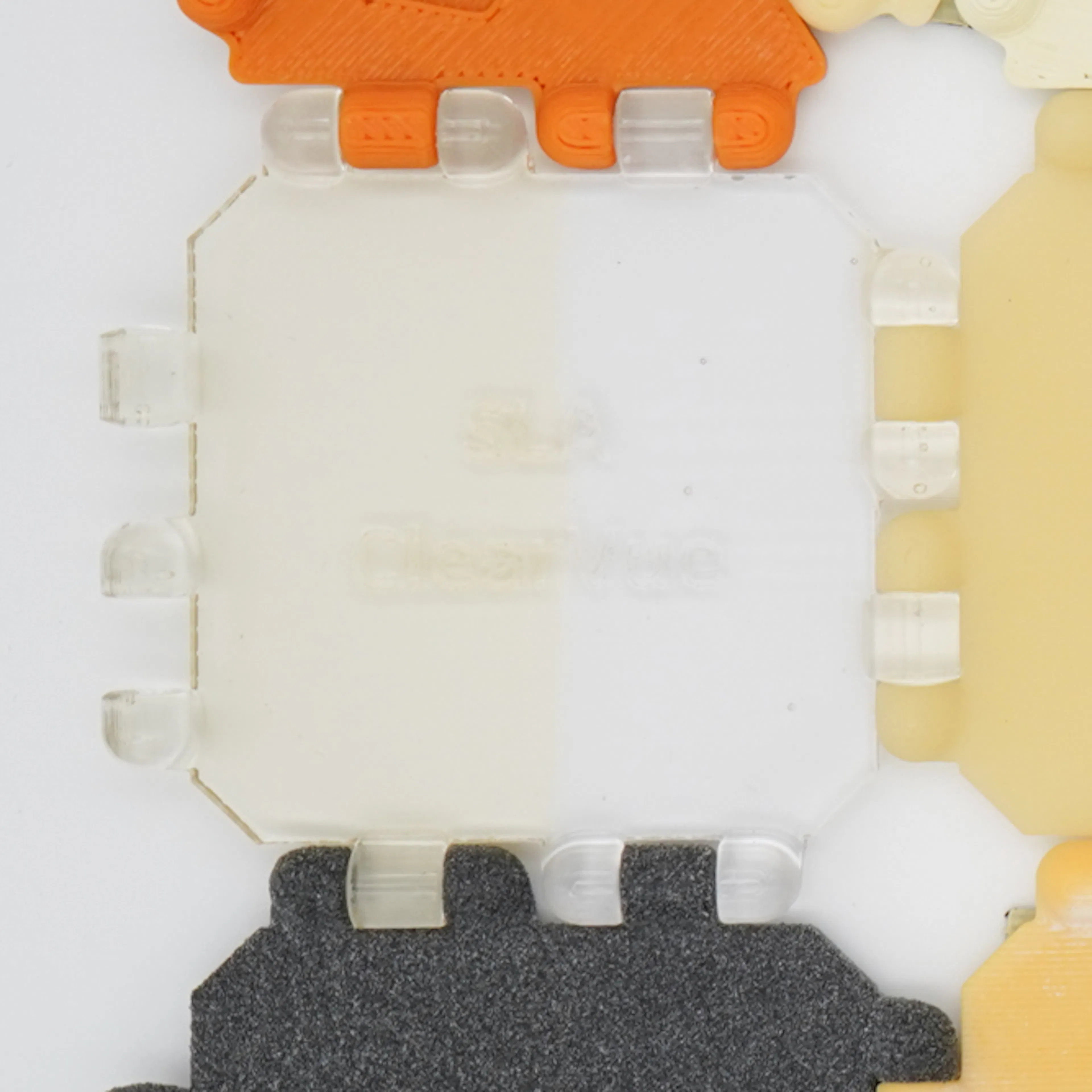

SLA Accura ClearVue
Left - UV Exposed, Right - Control

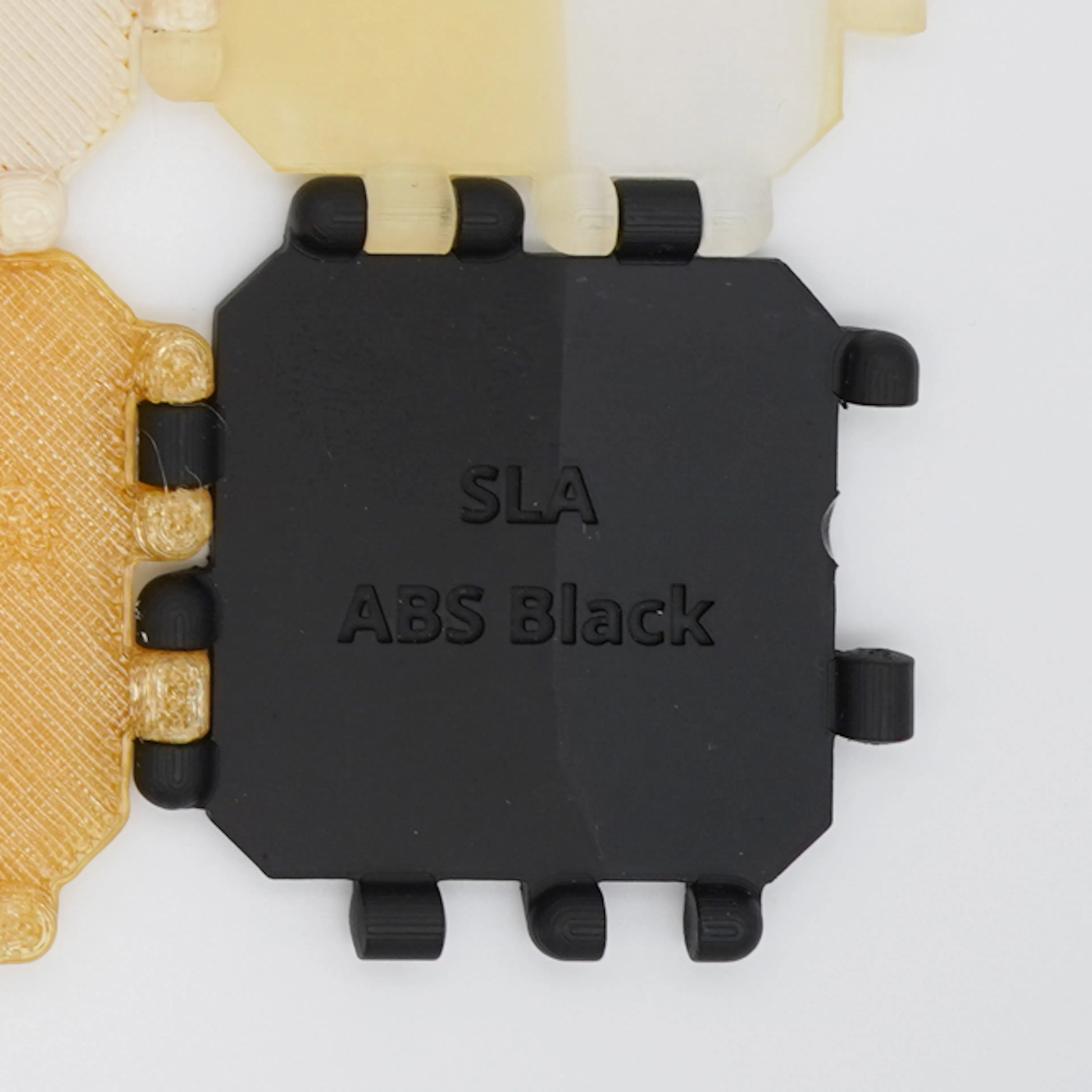

SLA Accura ABS Black (Matte Paint)
Left - UV Exposed, Right - Control

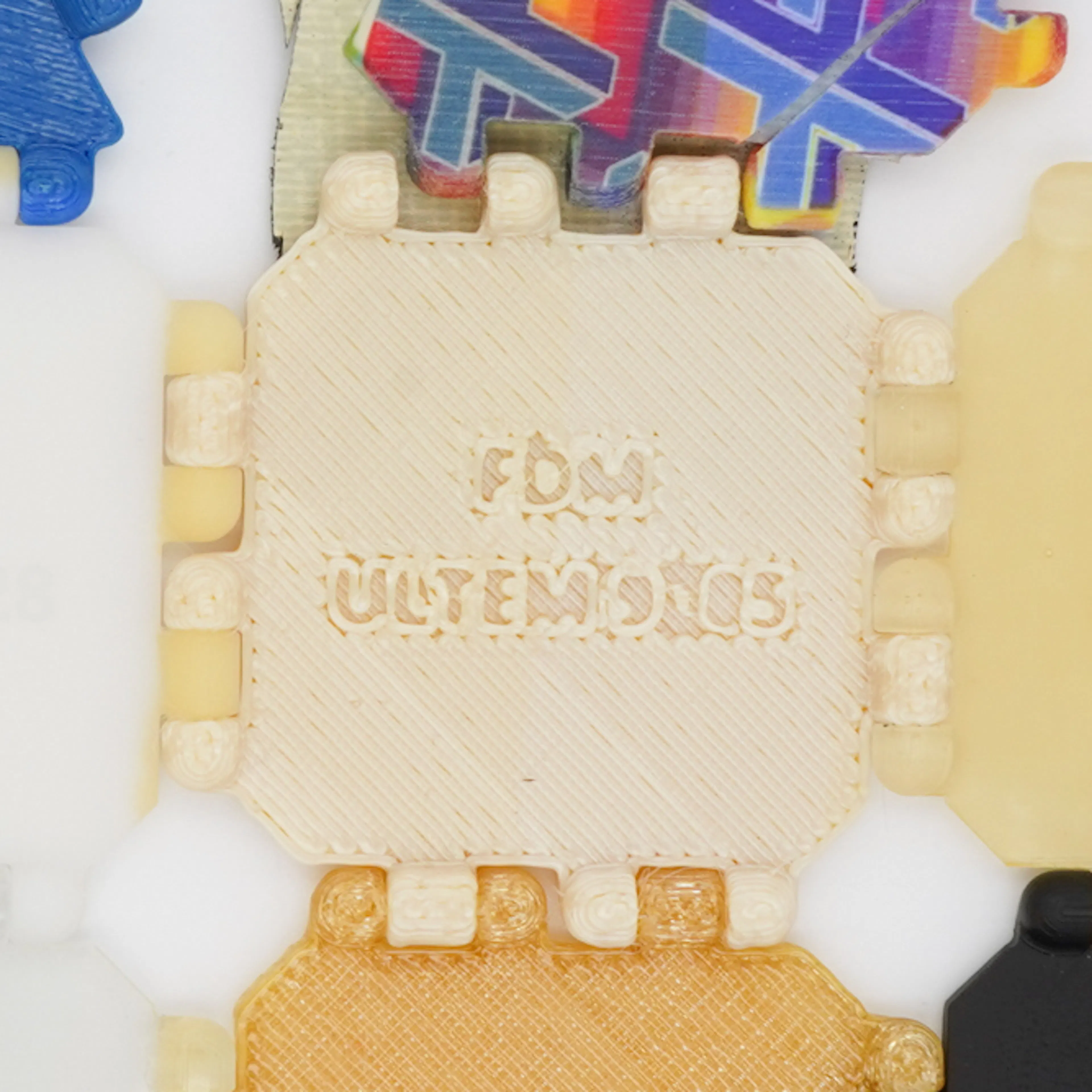

FDM ULTEM 9085 Tan
Left - UV Exposed, Right - Control

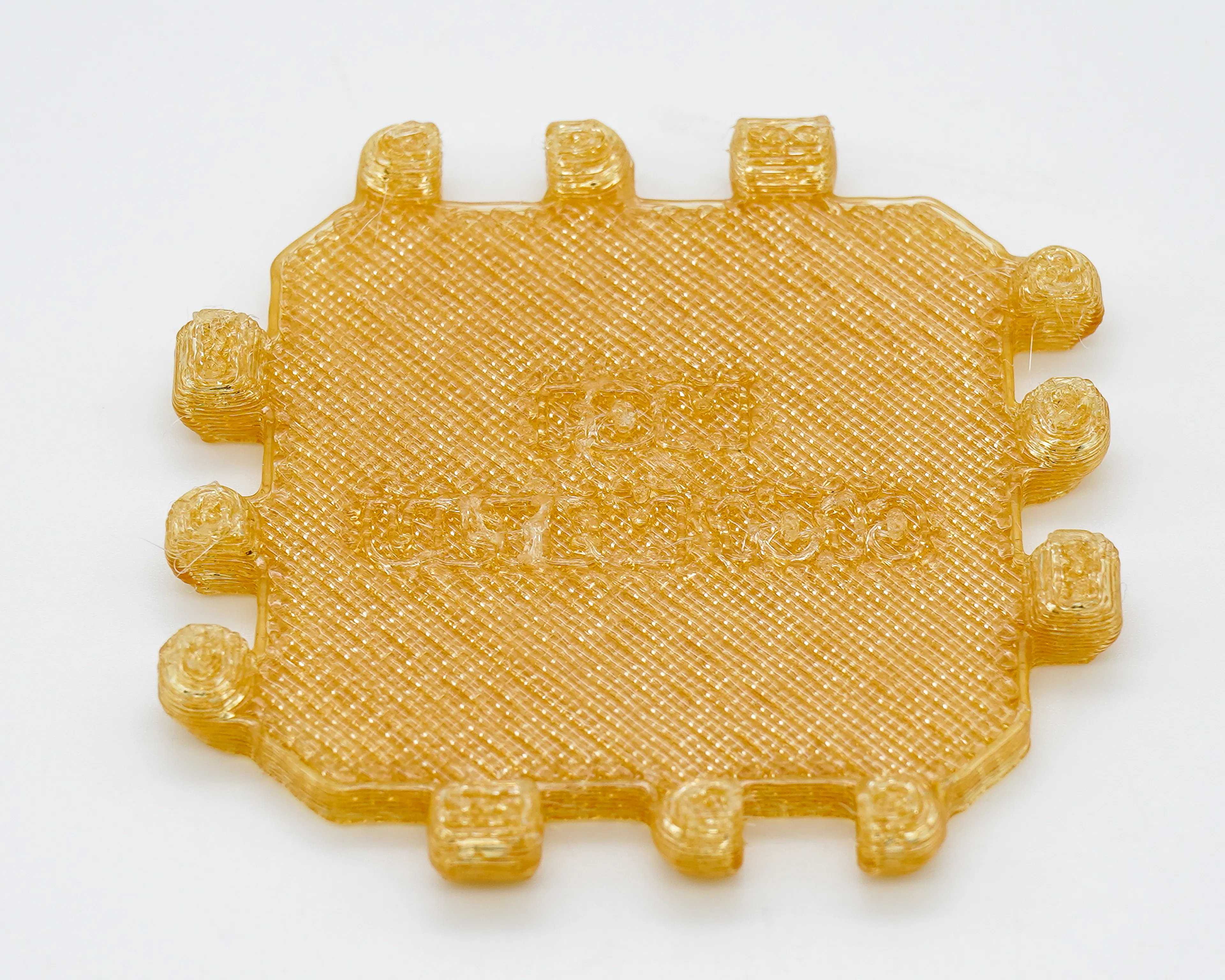

FDM ULTEM 1010
Left - UV Exposed, Right - Control

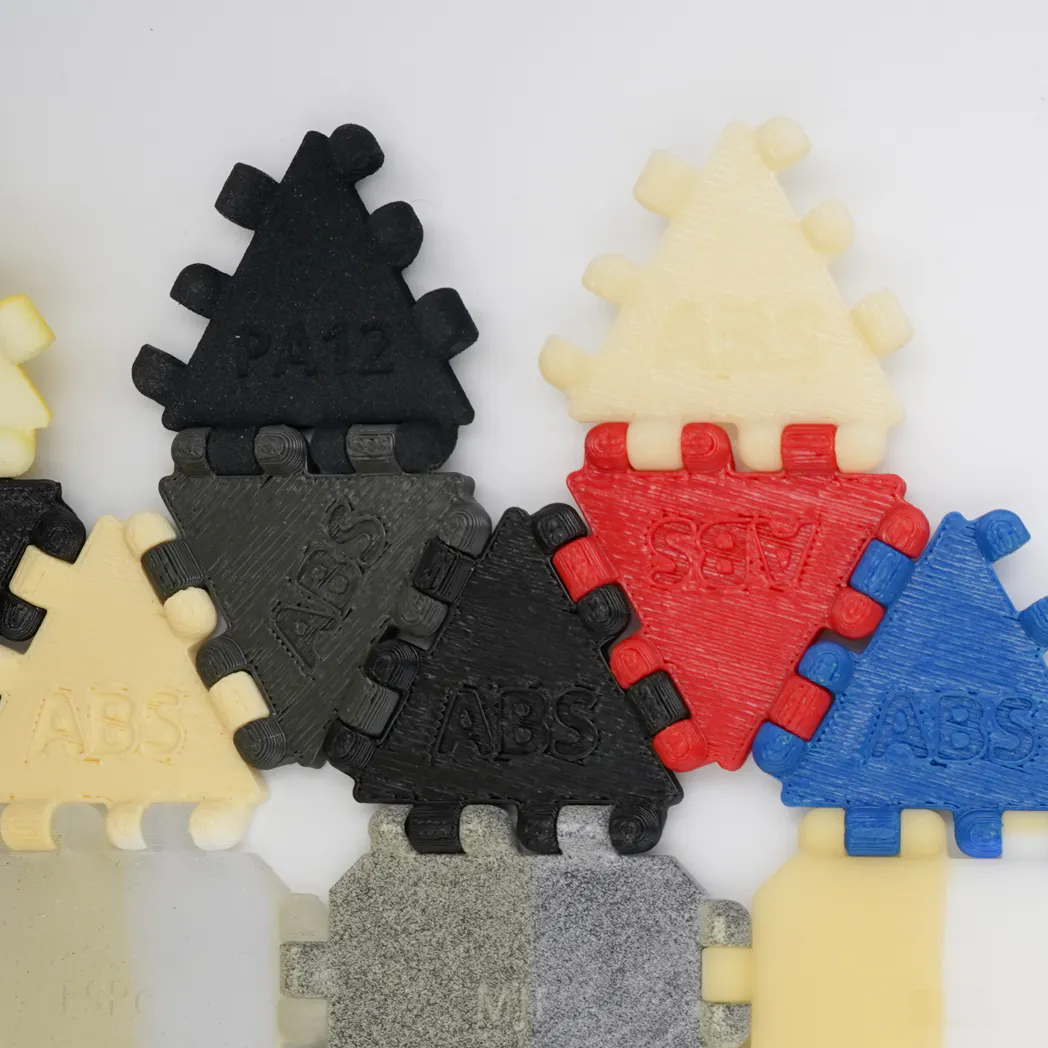

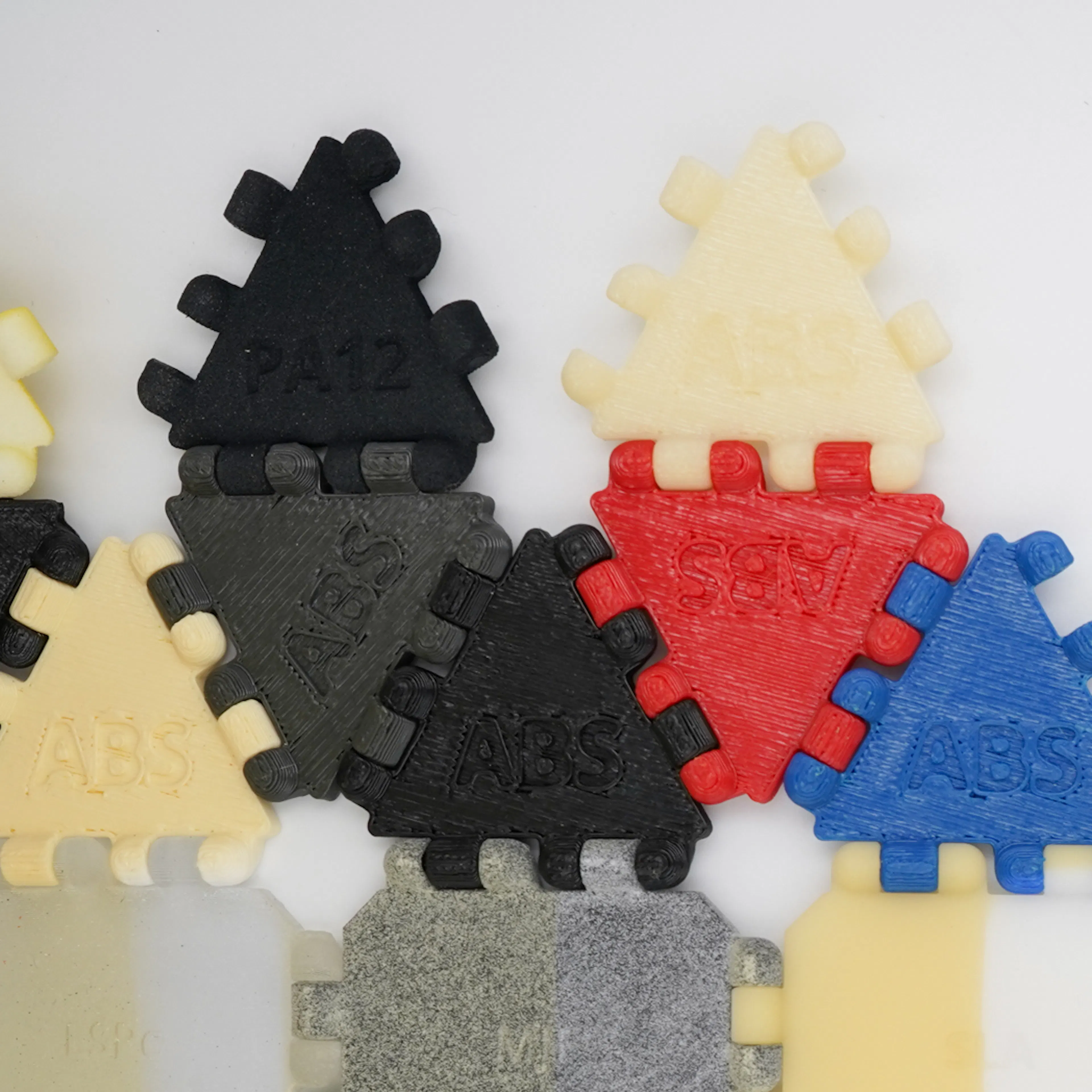

FDM ABS-M30
UV Exposed

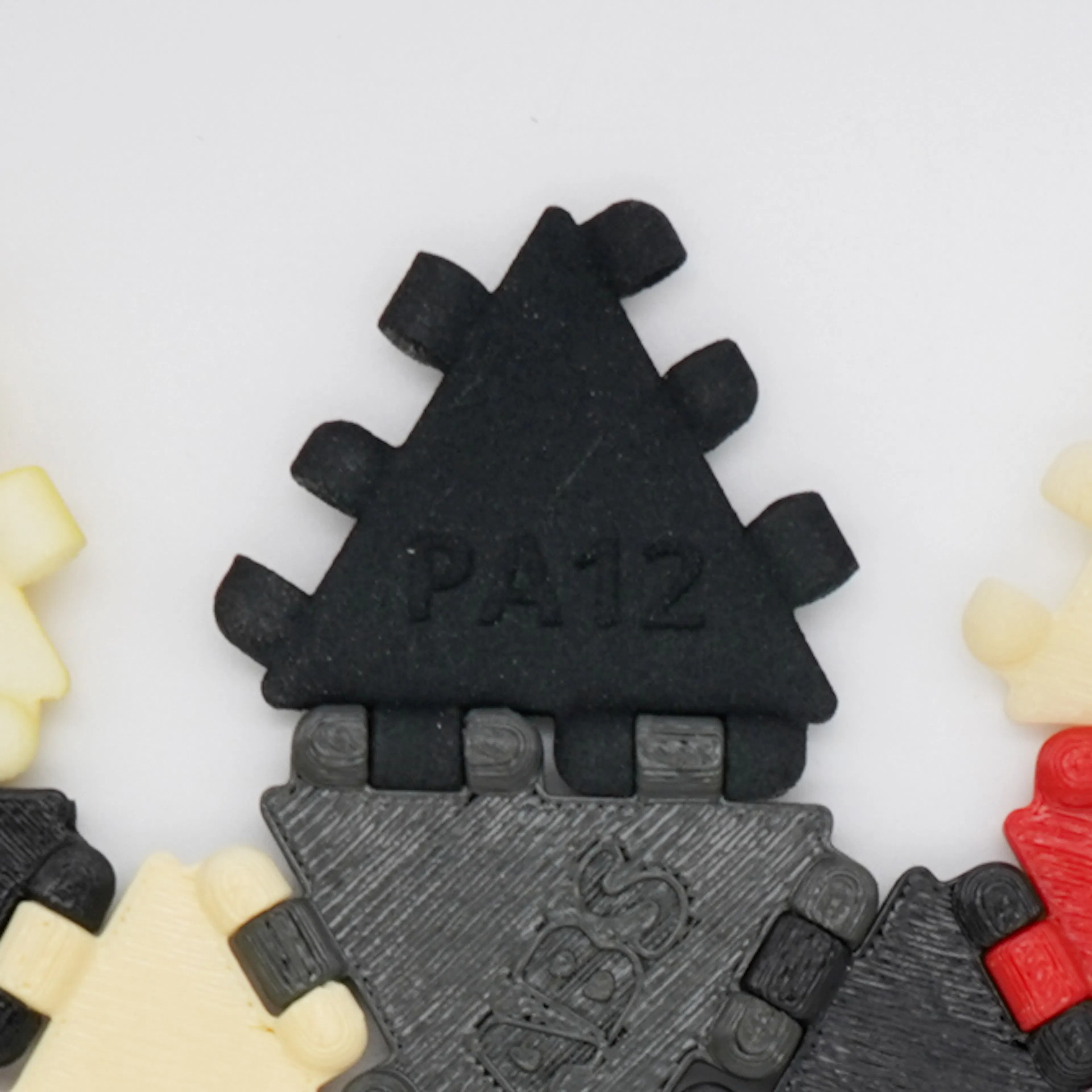

SLS Nylon 12 (PA12), Dyed Black
UV Exposed

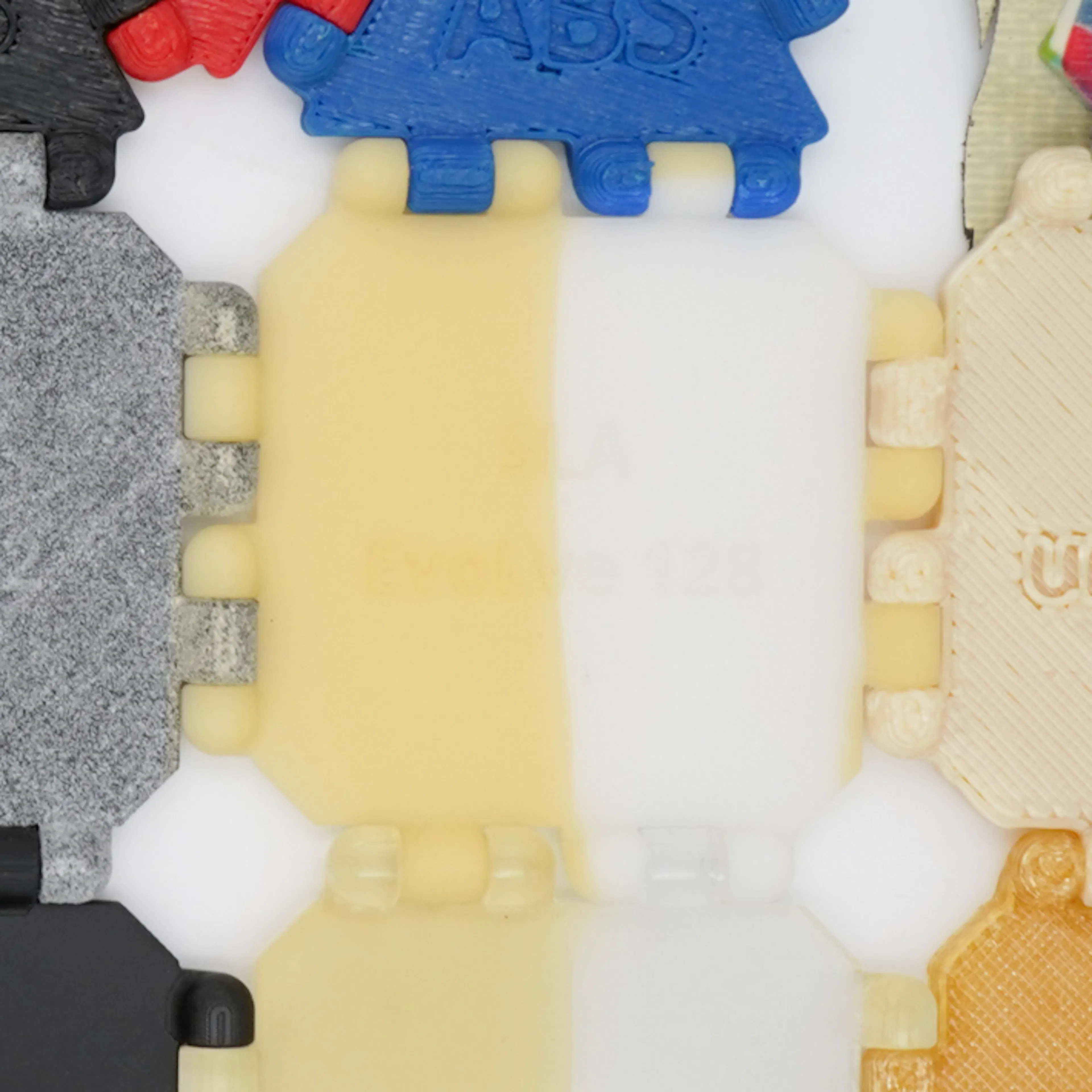

SLA Somos Evolve 128
Left - UV Exposed, Right - Control

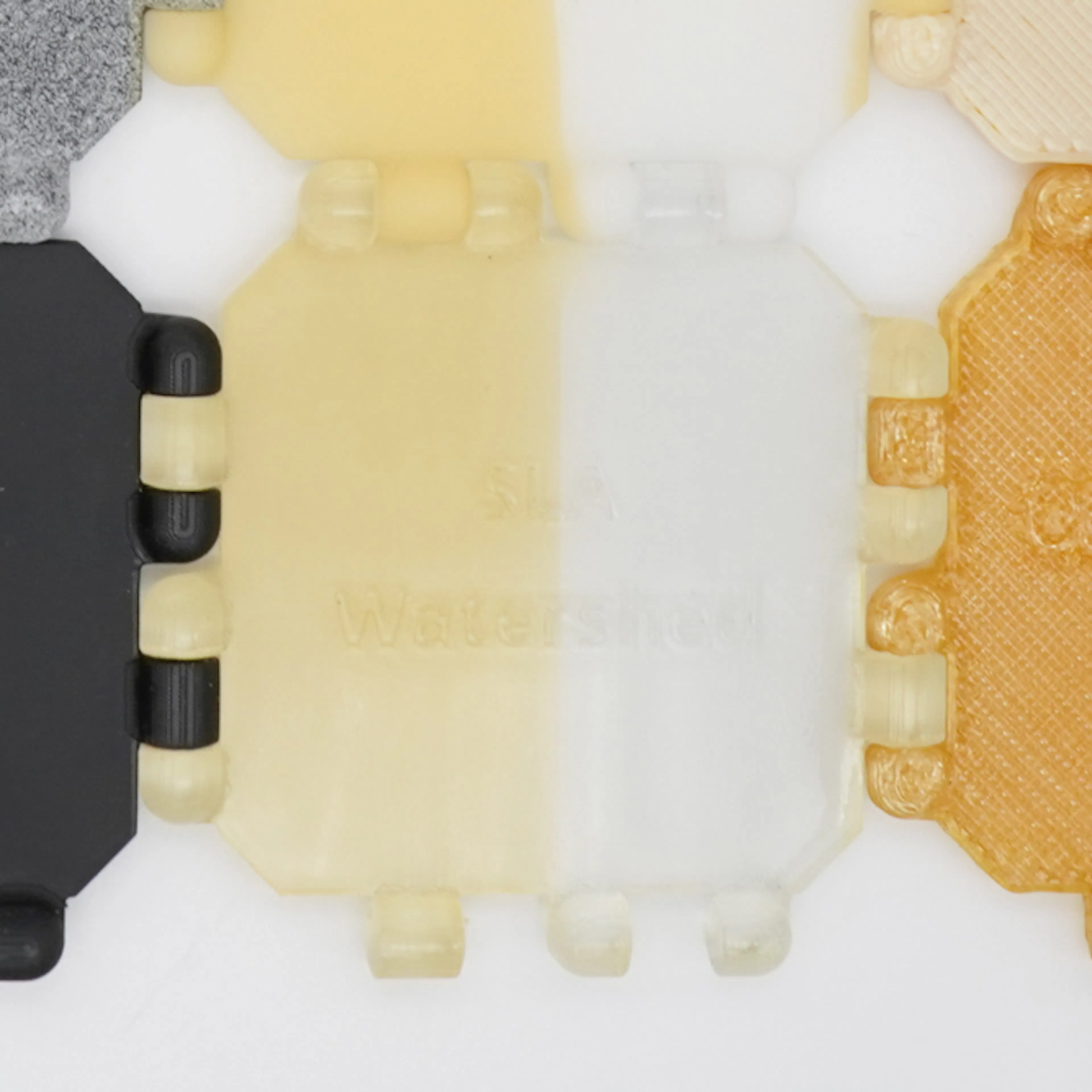

SLA Somos Watershed
Left - UV Exposed, Right - Control

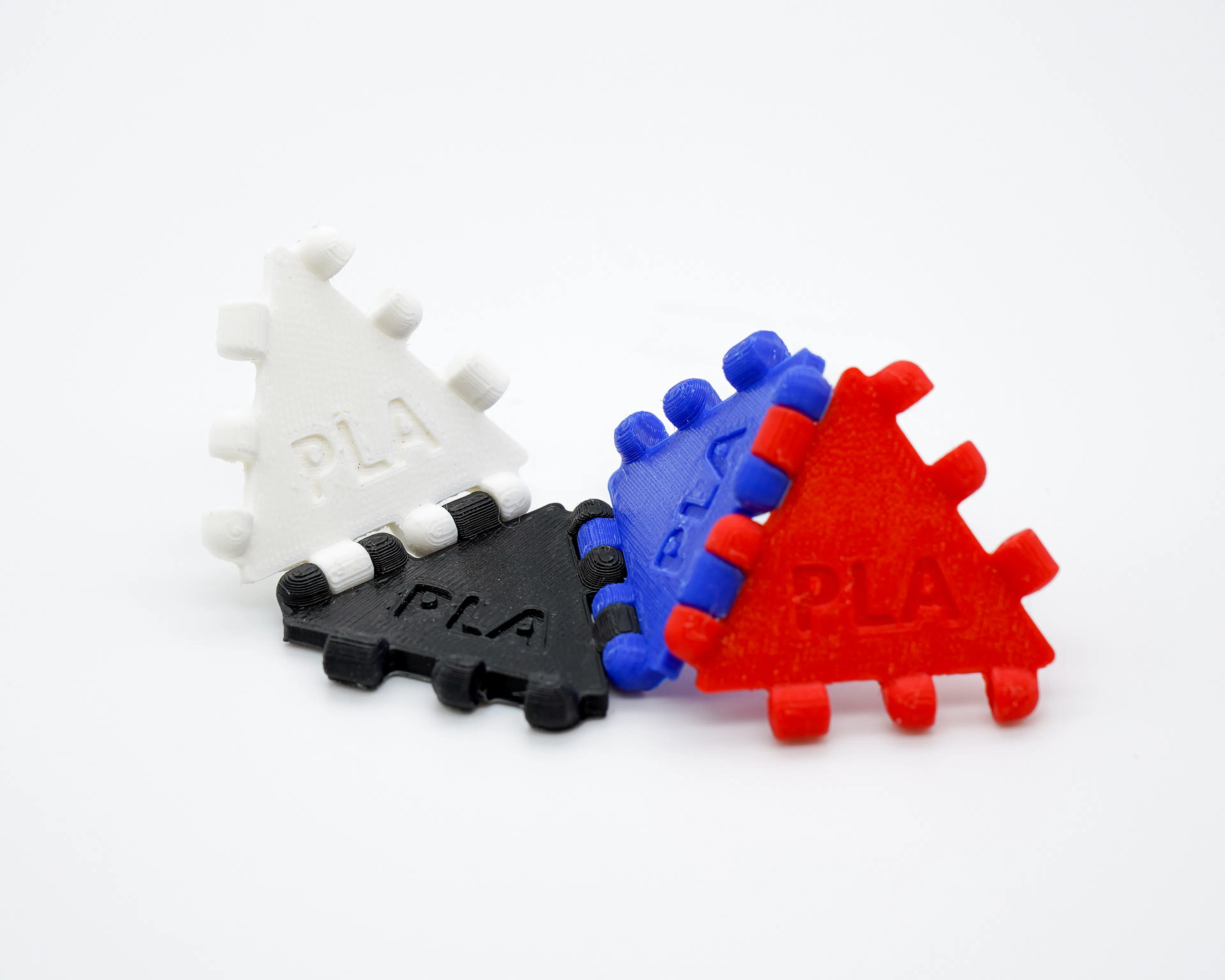

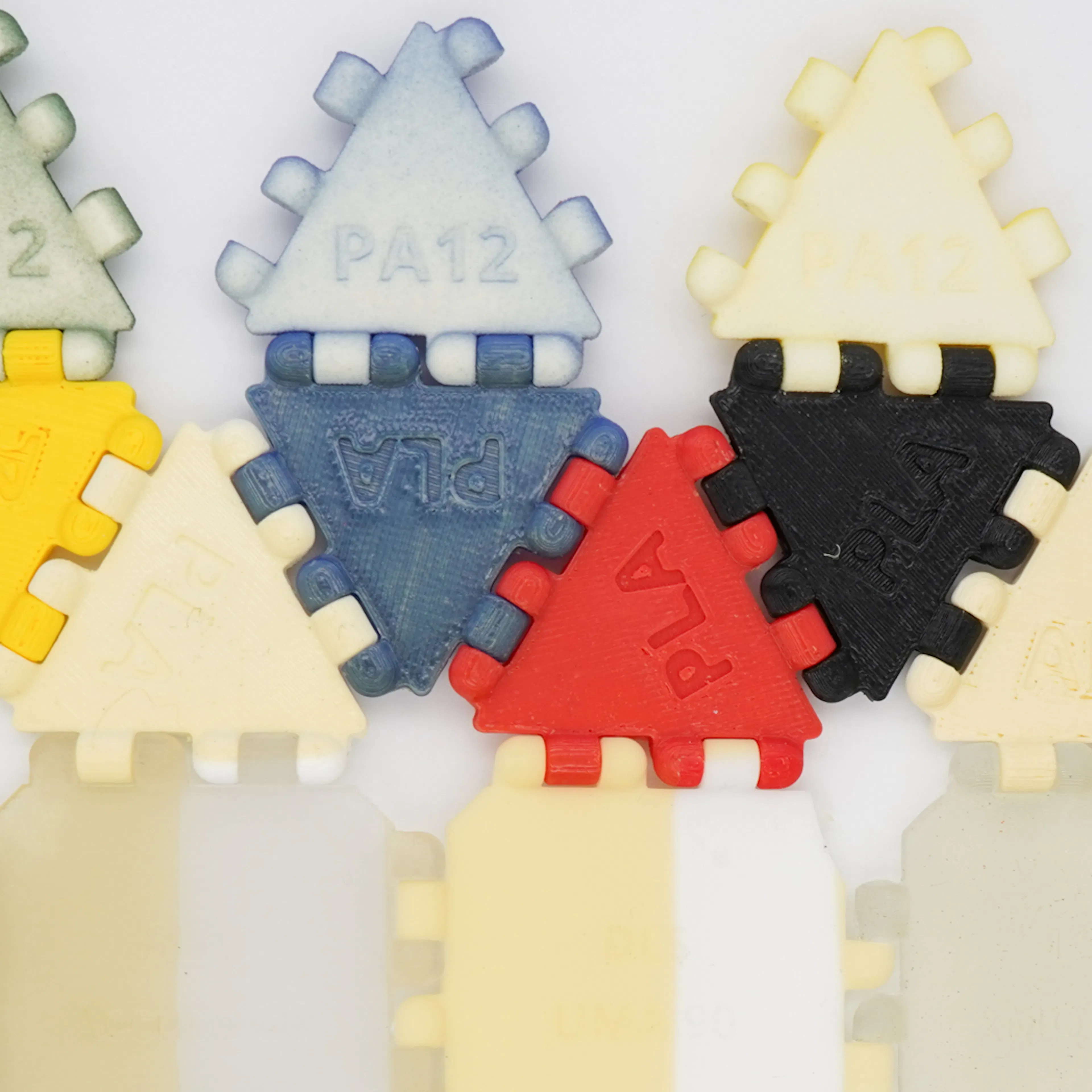

FFF PLA
UV Exposed

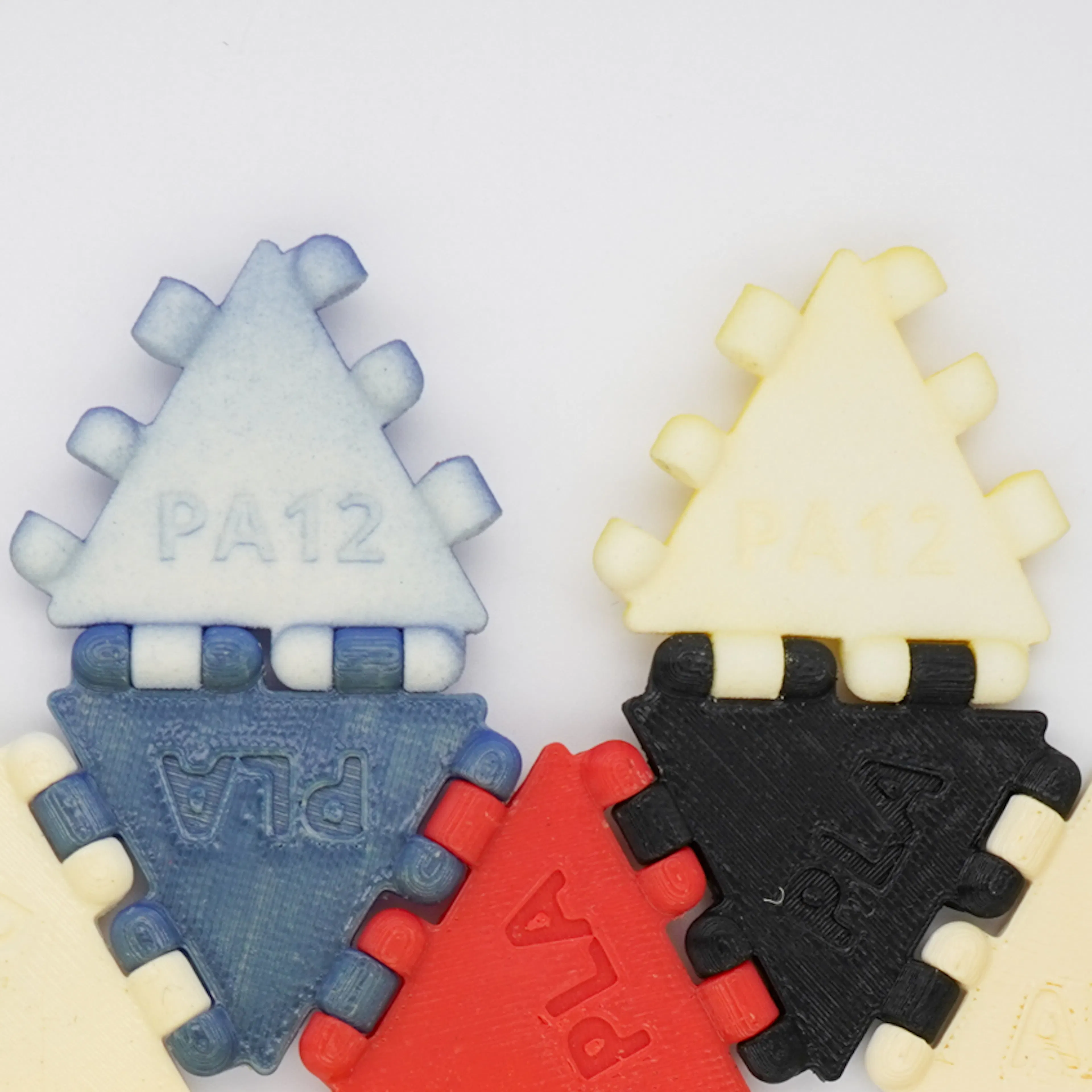

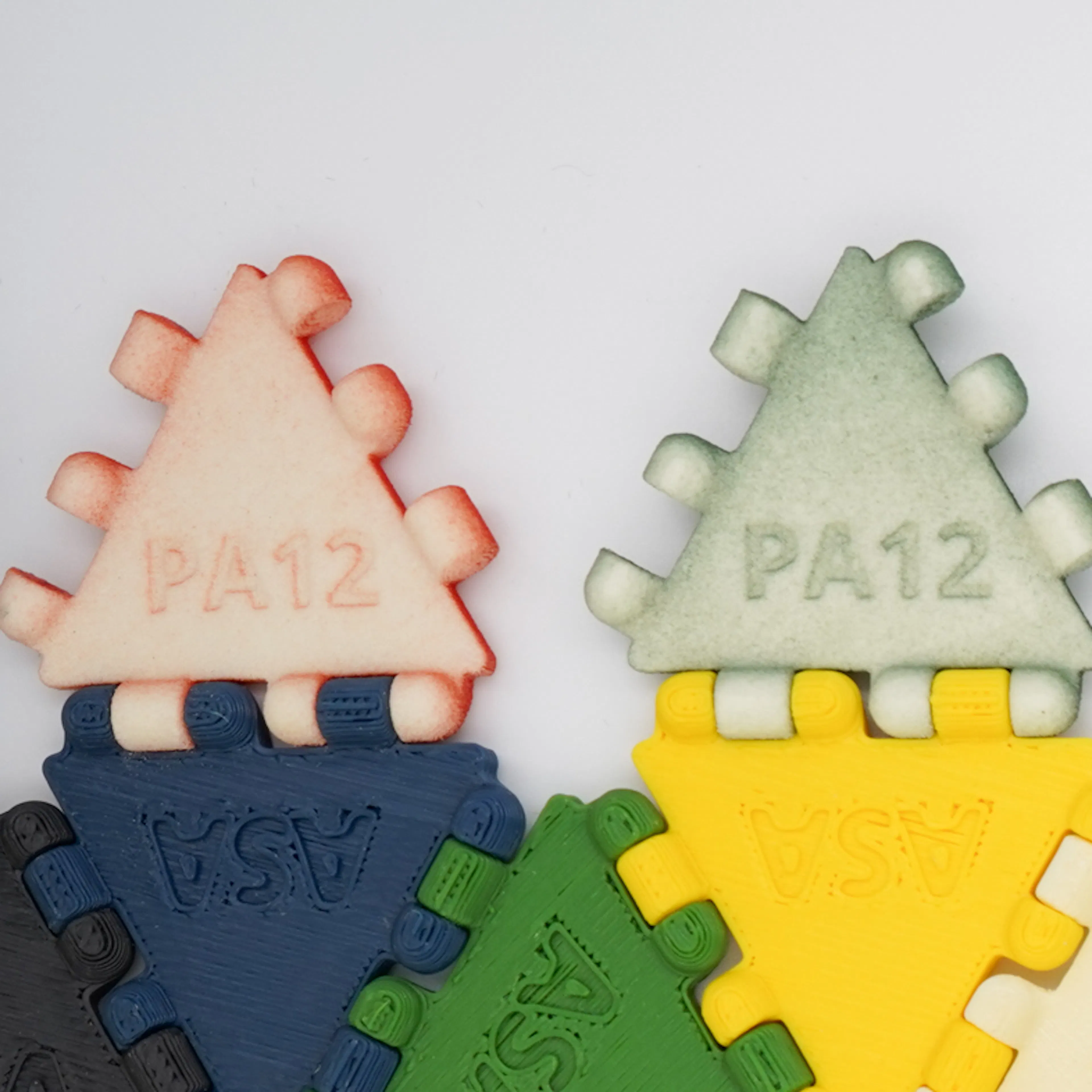

SLS Nylon 12 (PA12), Dyed Blue and Yellow
UV Exposed

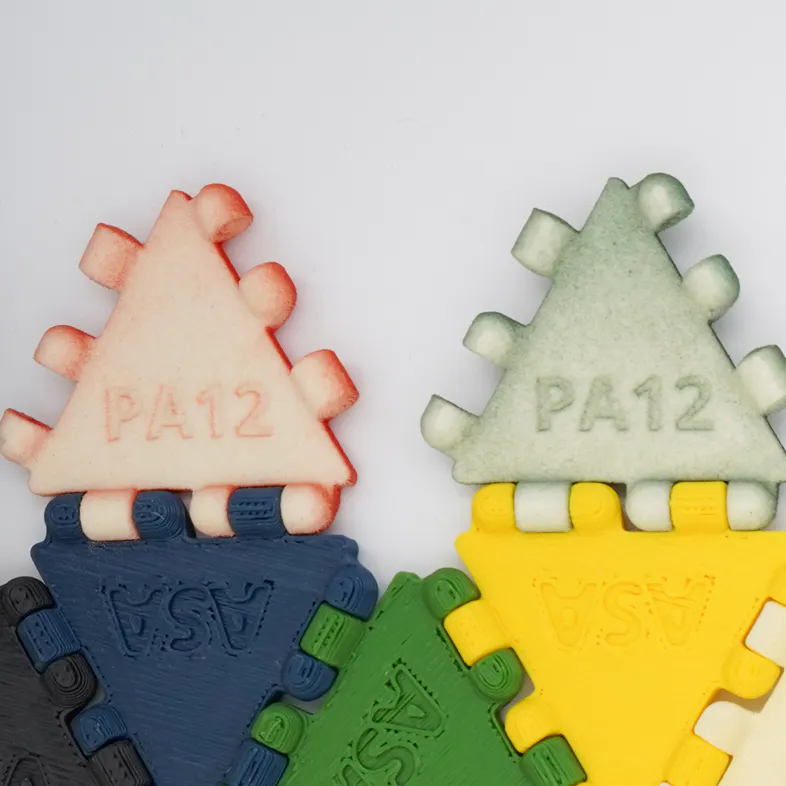

SLS Nylon 12 (PA12), Dyed Red and Green
UV Exposed

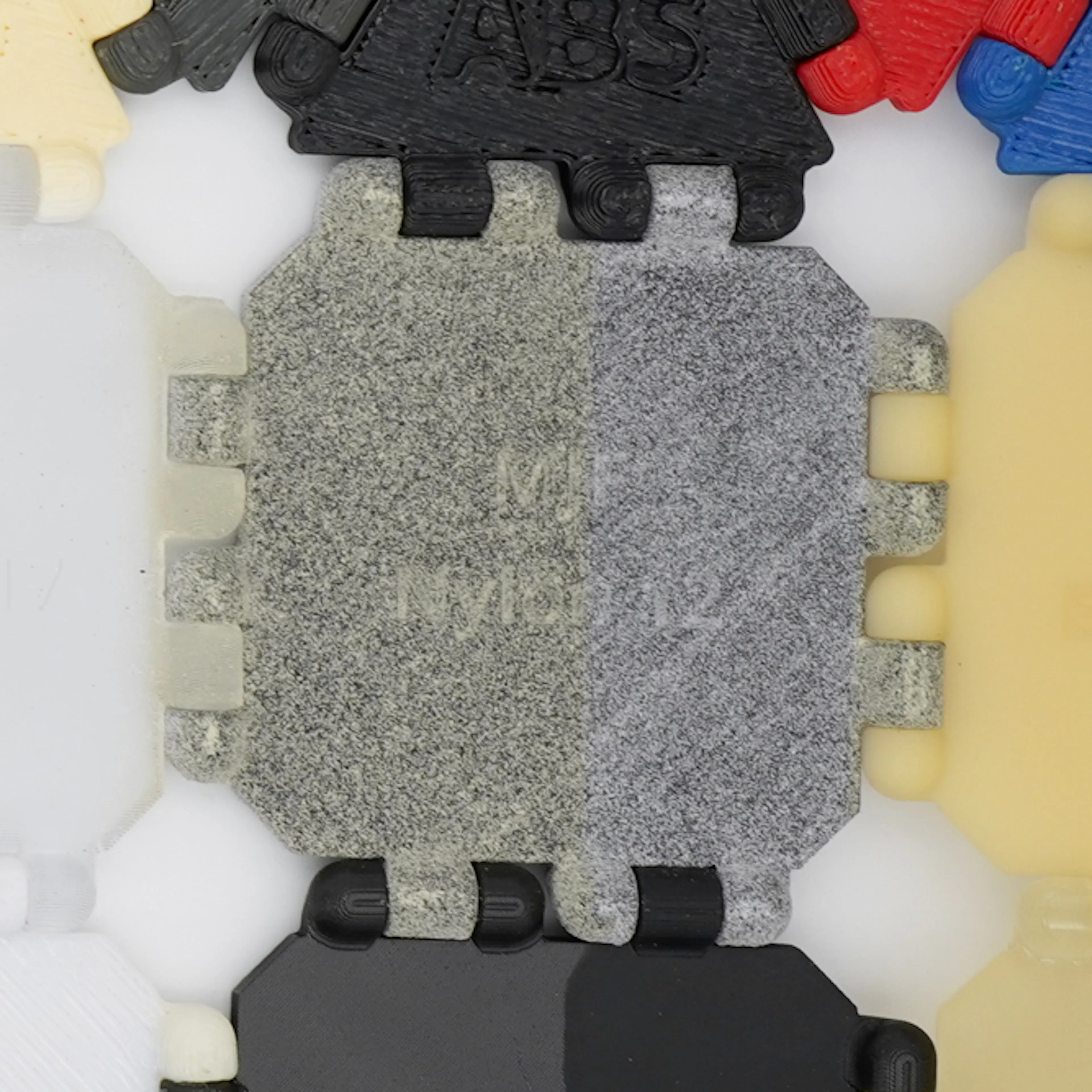

HP MJF Nylon 12
Left - UV Exposed, Right - Control

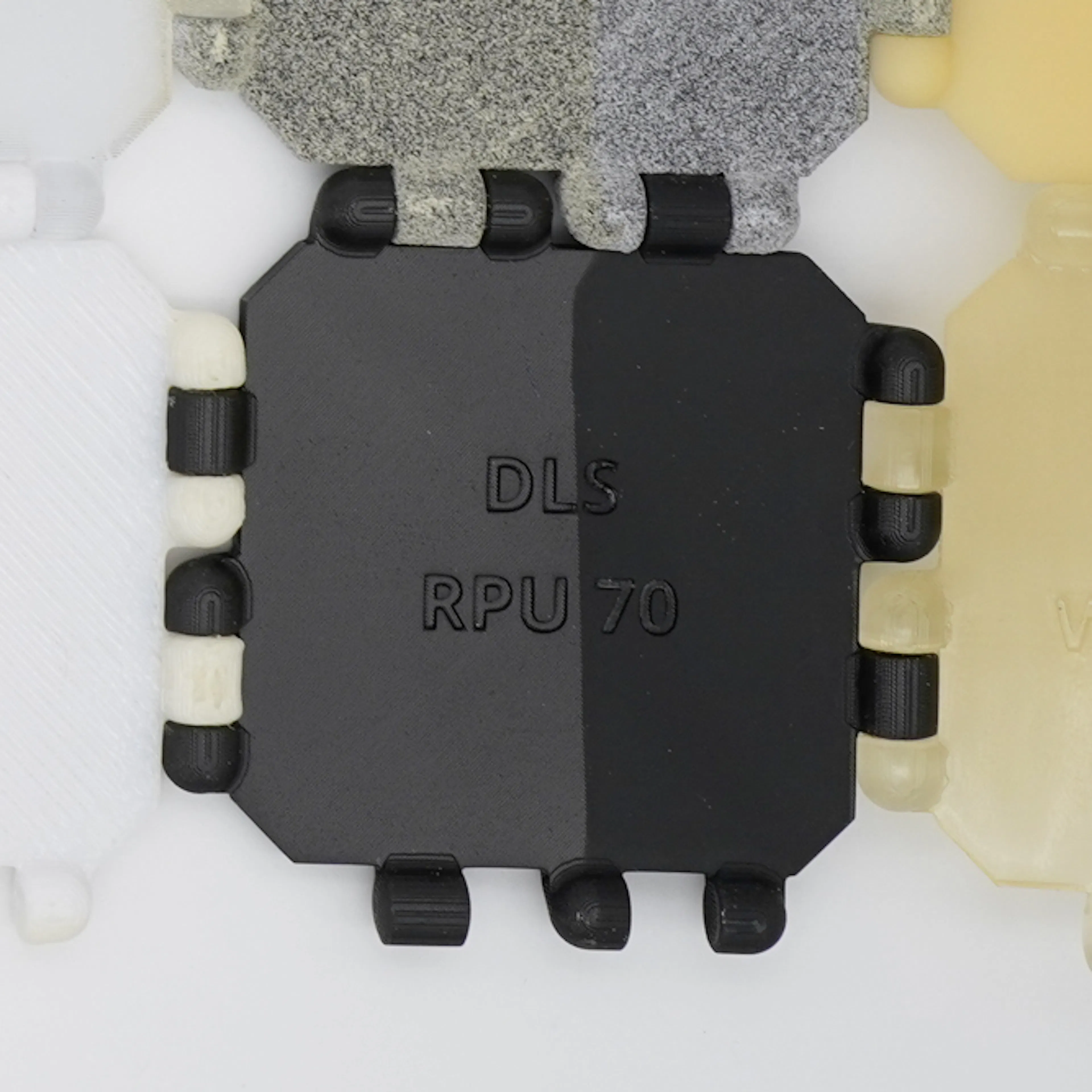

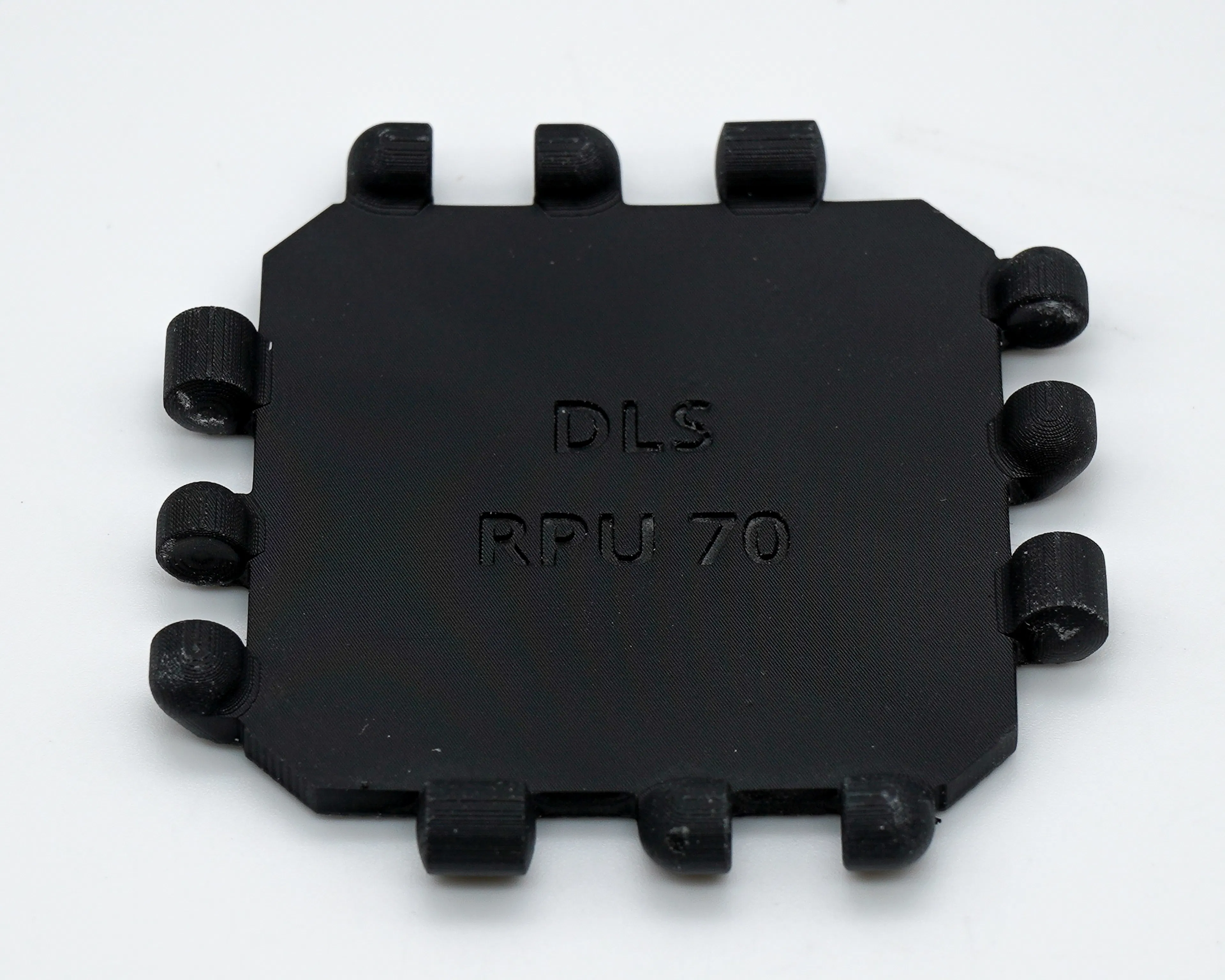

Carbon DLS RPU 70
Left - UV Exposed, Right - Control

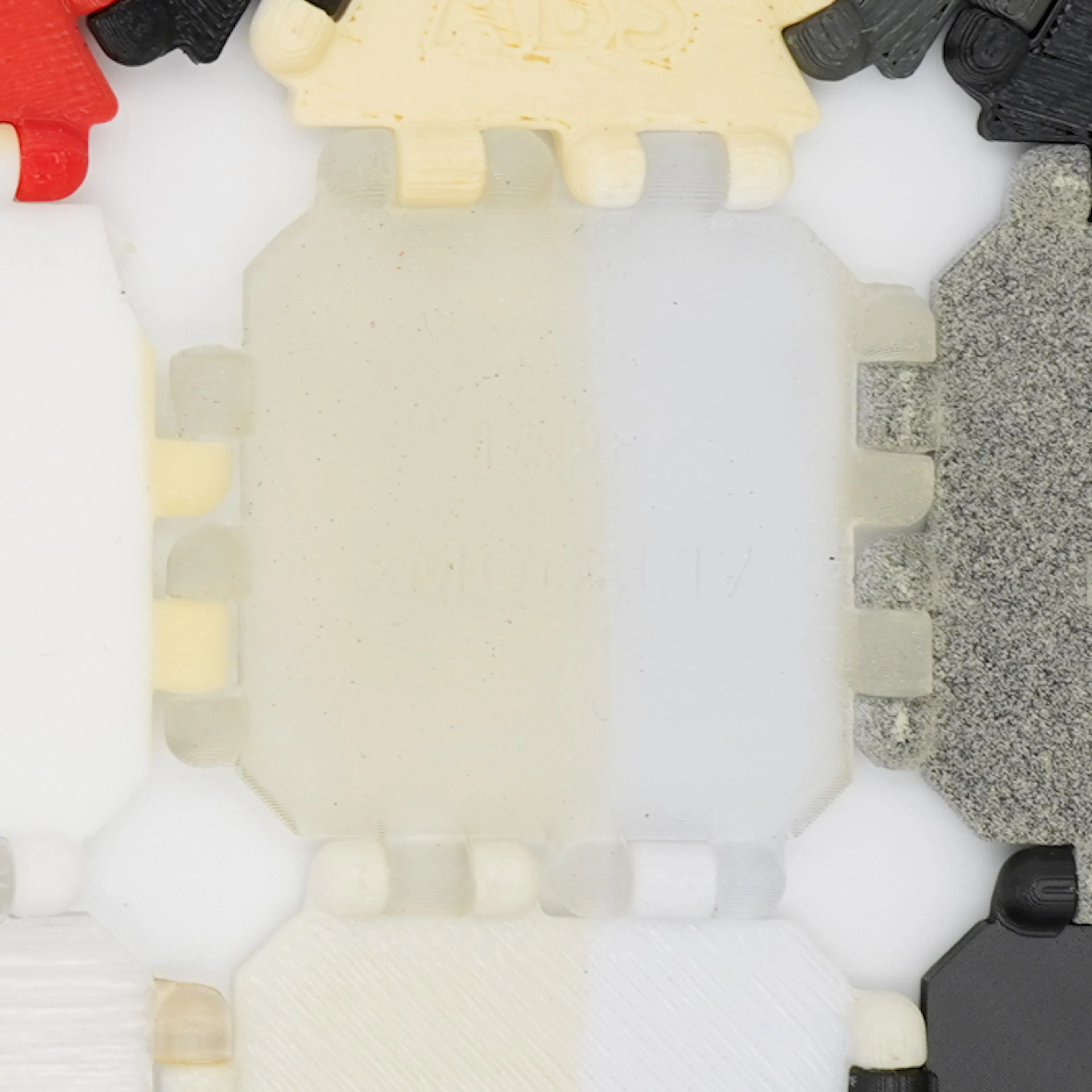

LSPc xMODEL17 Clear
Left - UV Exposed, Right - Control

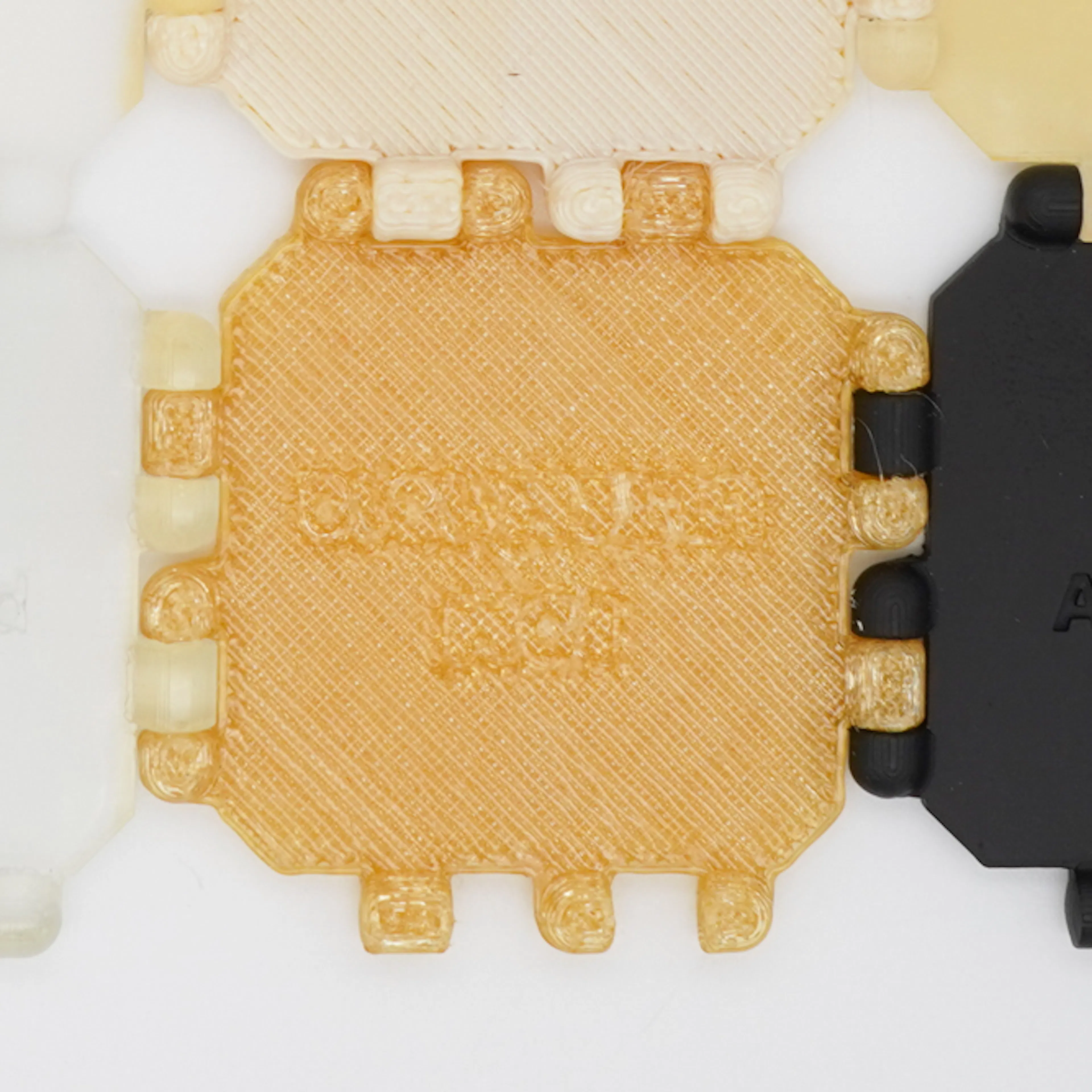

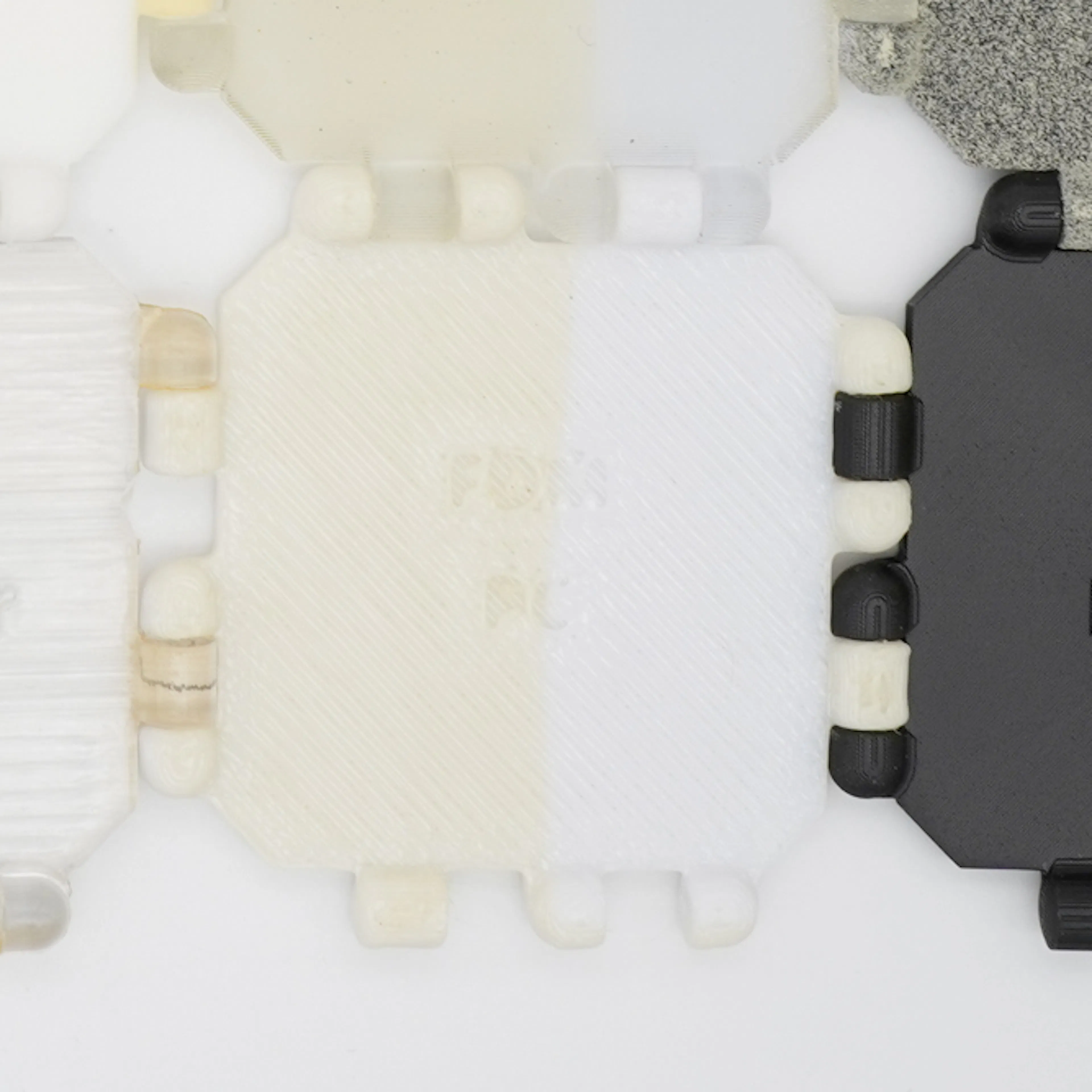

FDM PC
Left - UV Exposed, Right - Control

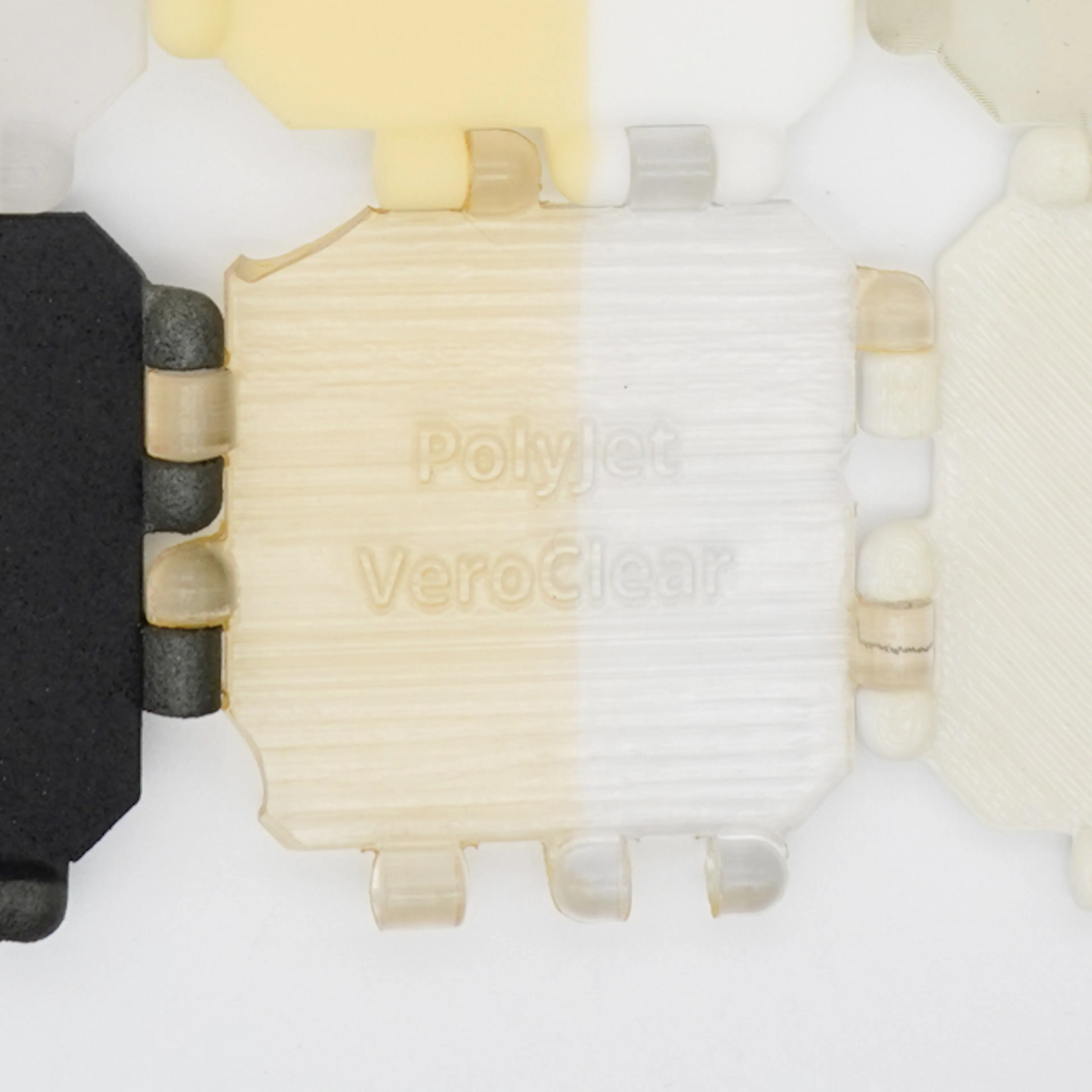

PolyJet VeroClear
Left - UV Exposed, Right - Control

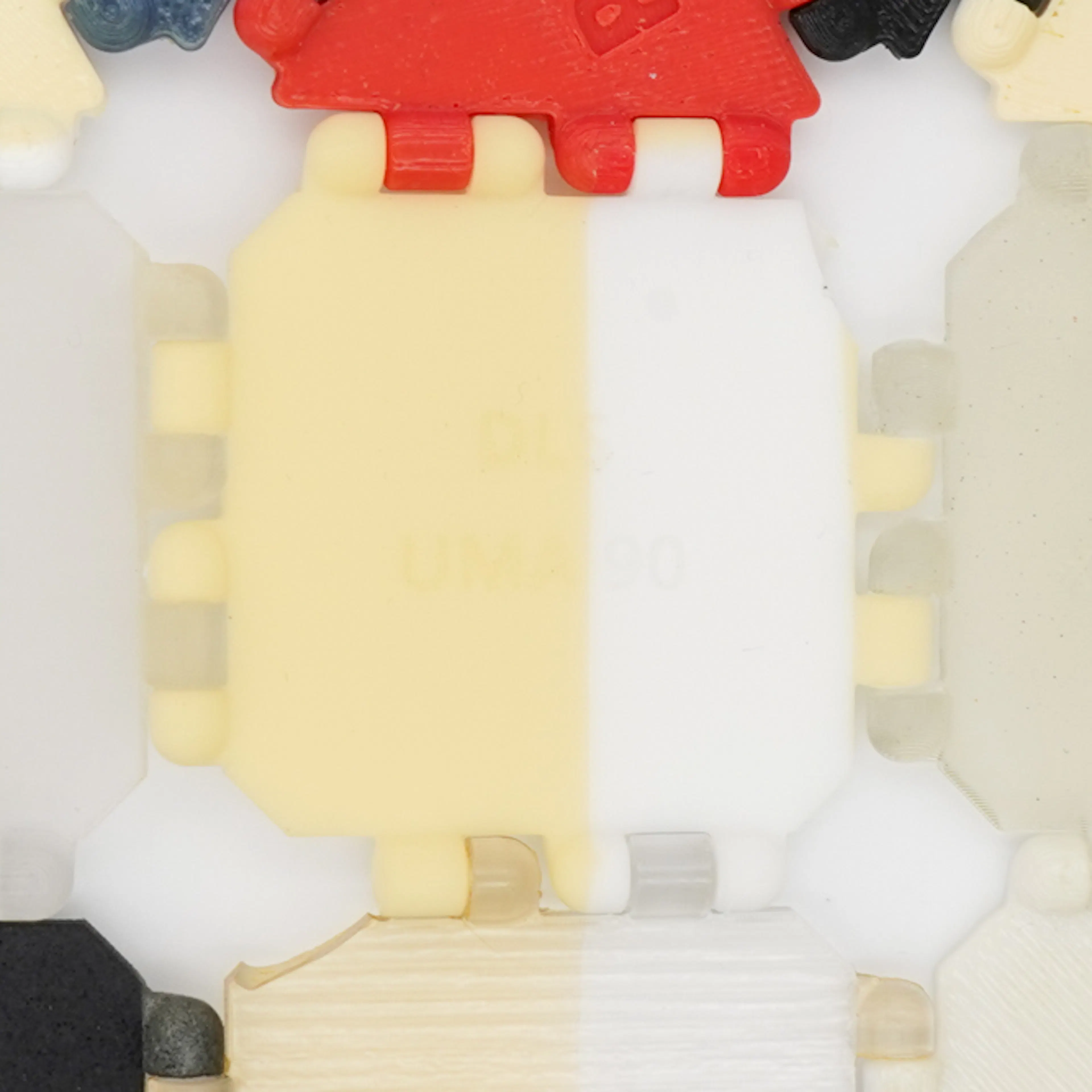

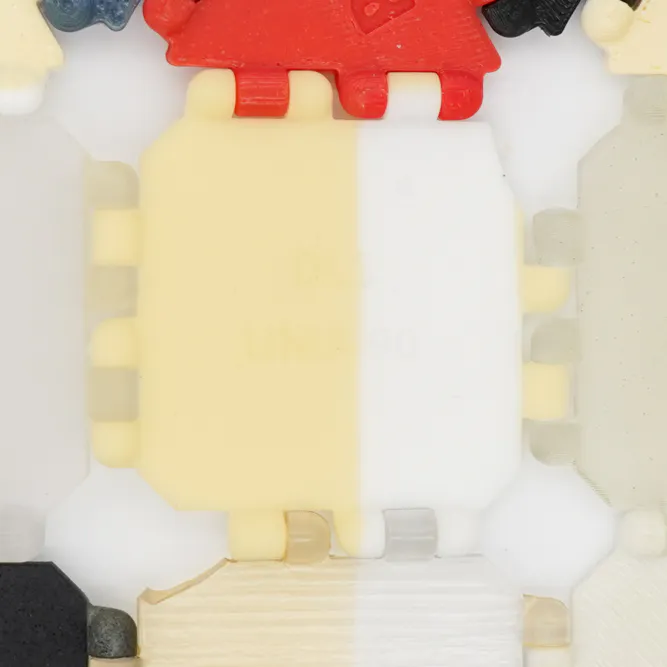

DLS UMA White
Left - UV Exposed, Right - Control

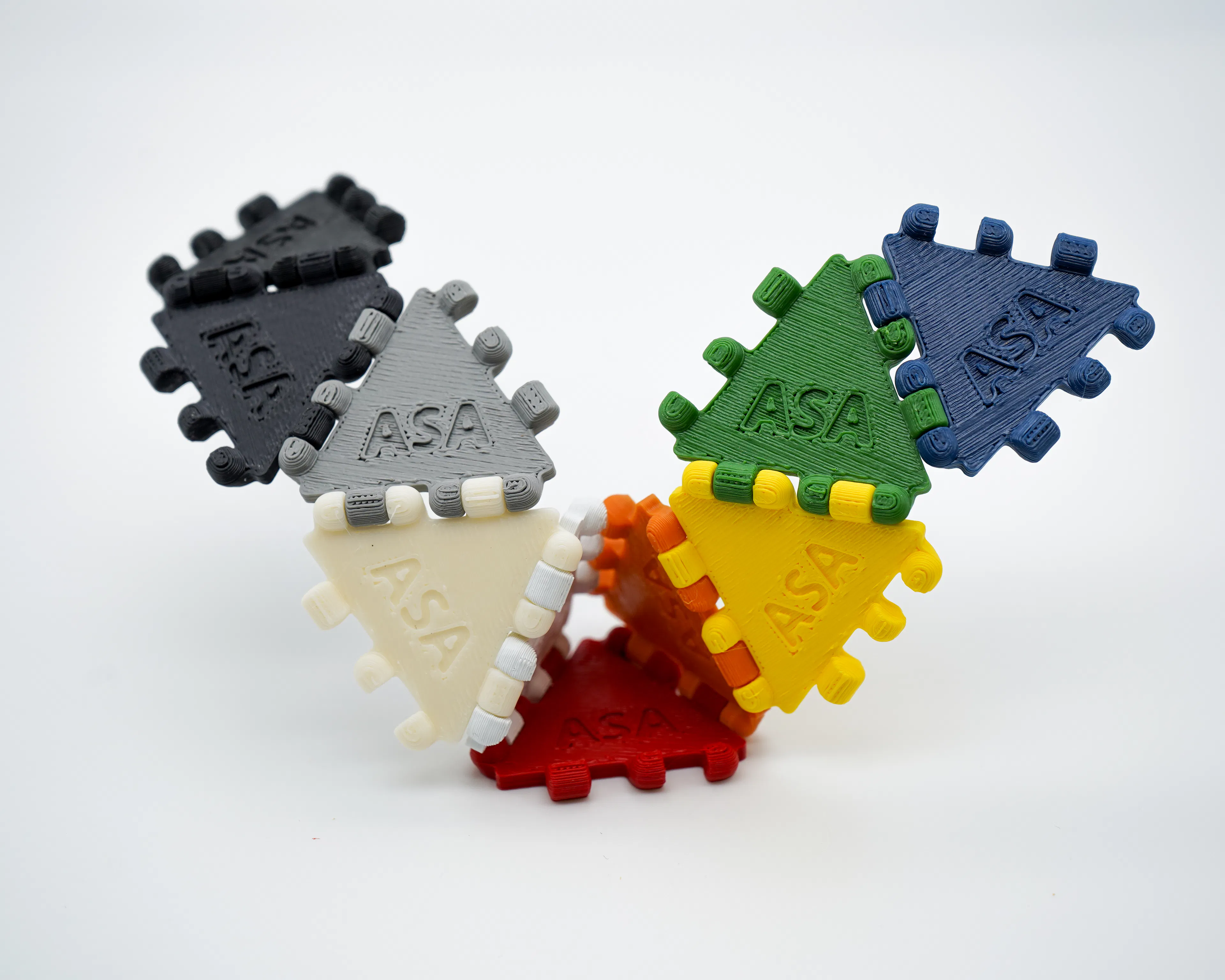

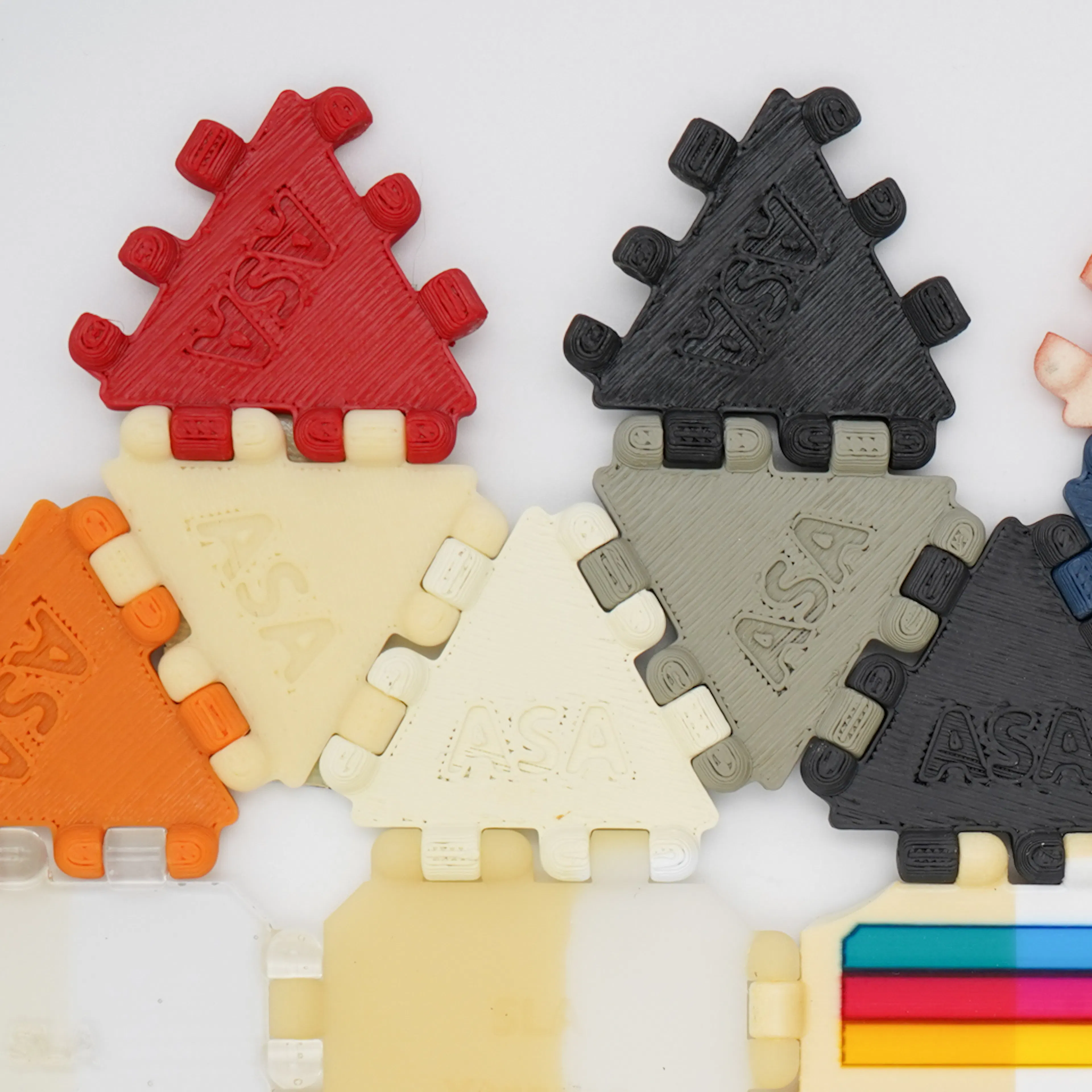

FDM ASA
UV Exposed

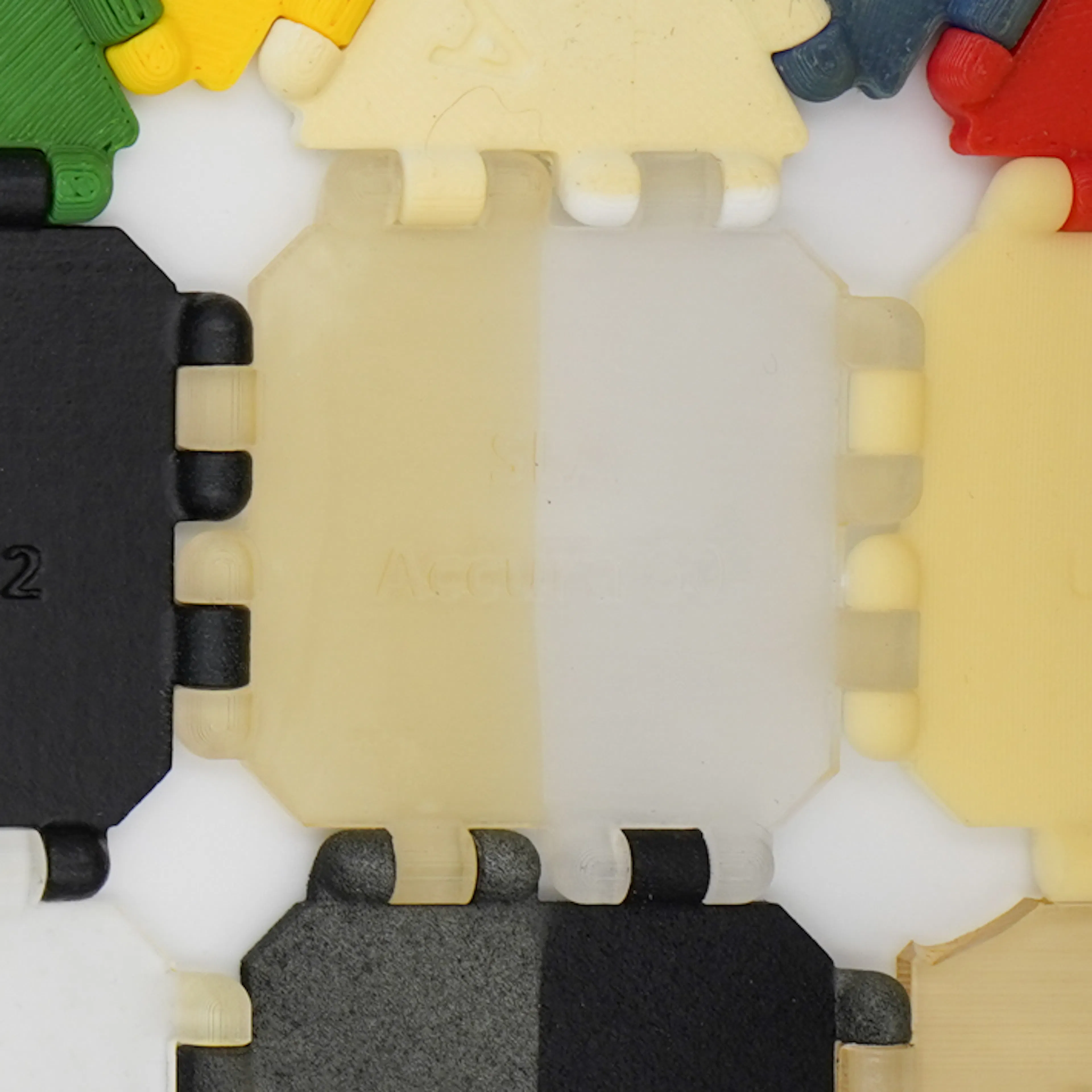

SLA Accura 60
Left - UV Exposed, Right - Control

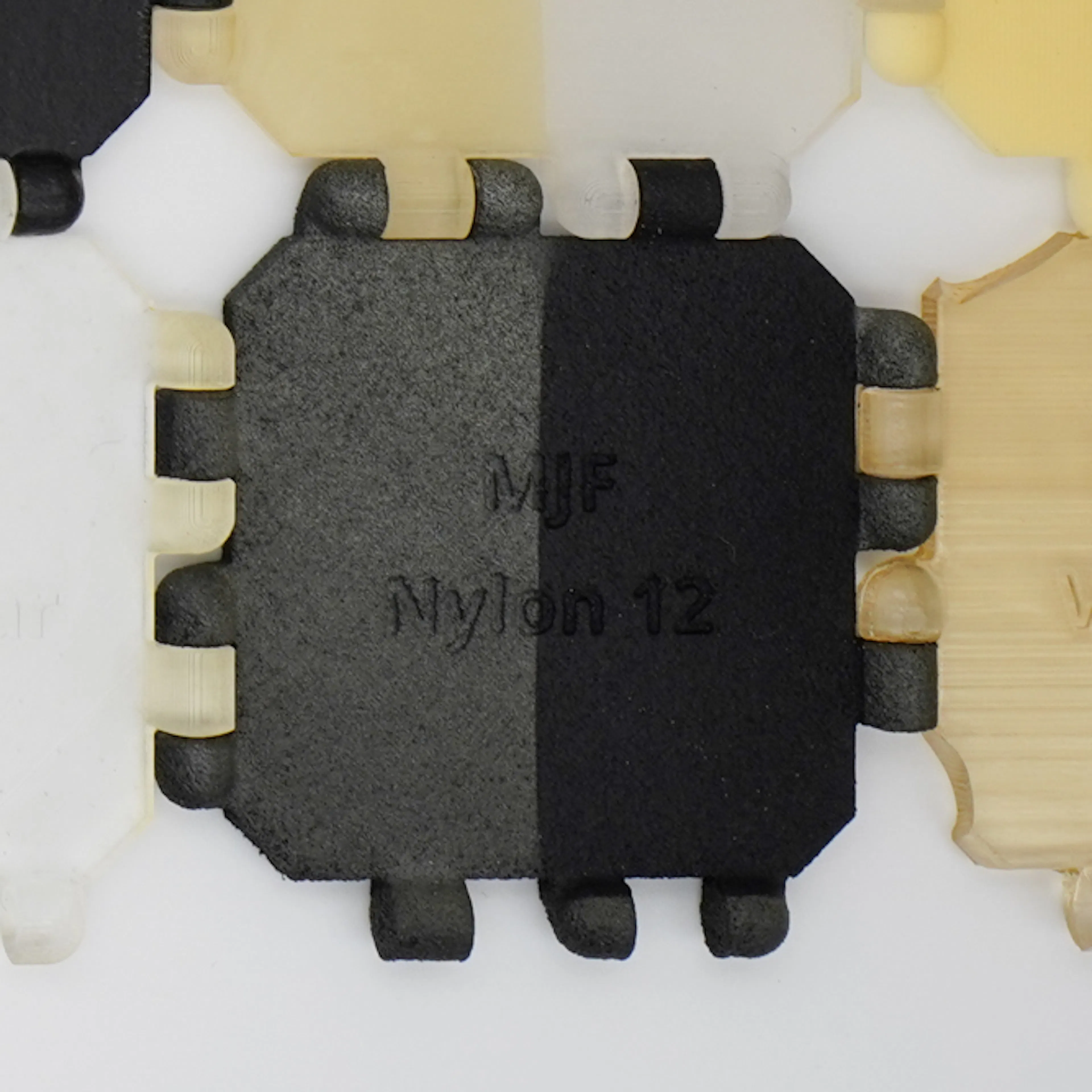

HP MJF, Dyed Black
Left - UV Exposed, Right - Control

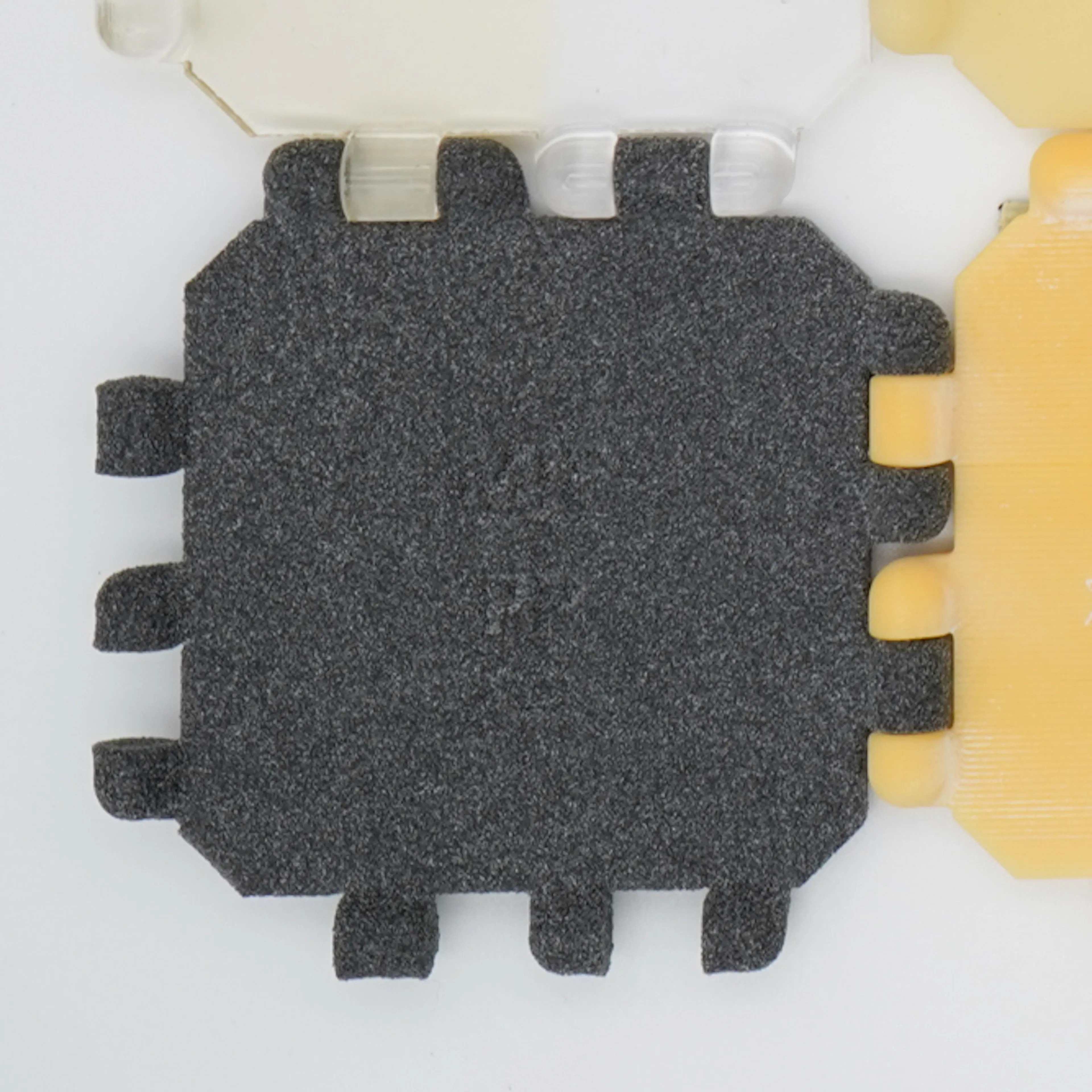

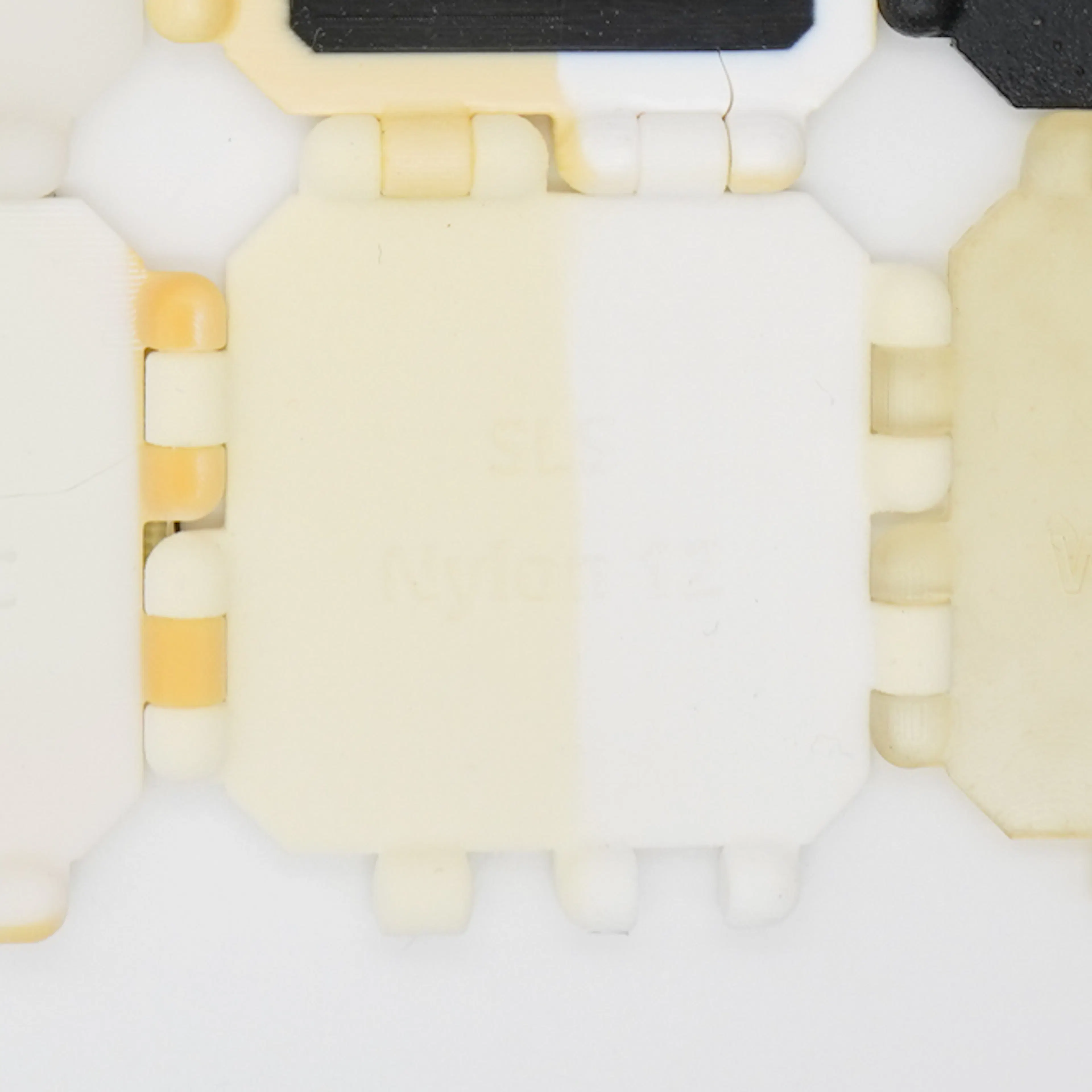

SLS Nylon 12
Left - UV Exposed, Right - Control

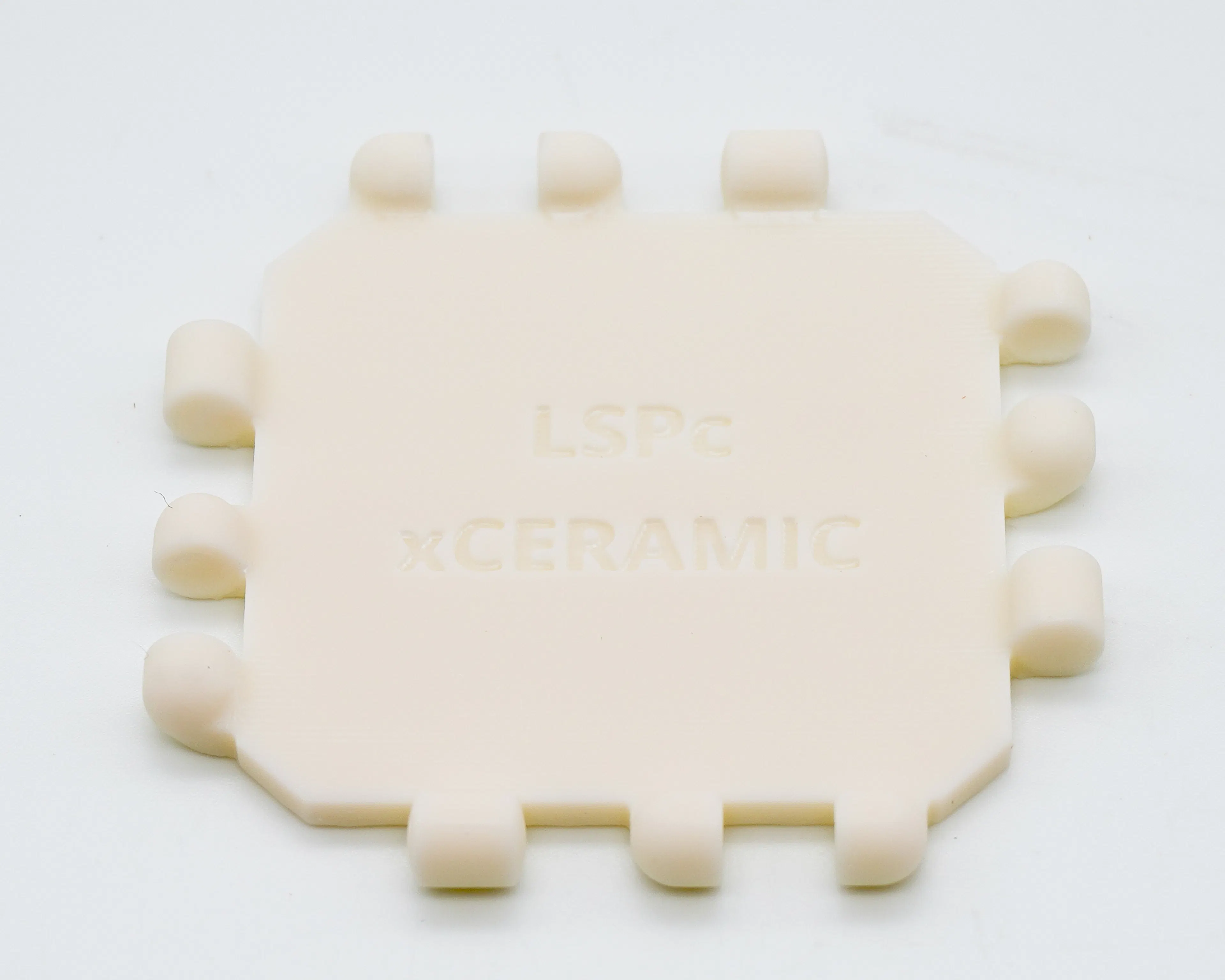

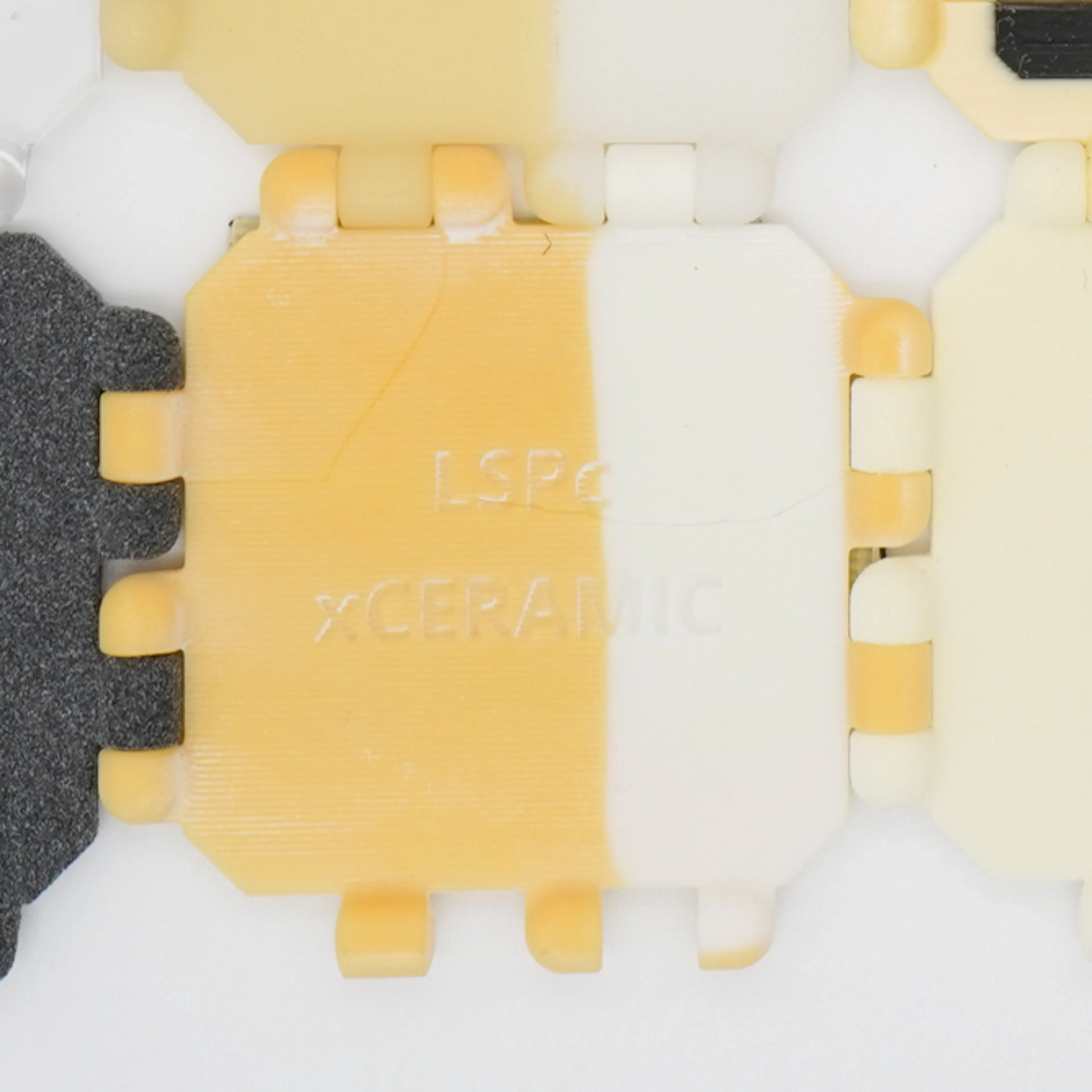

LSPc xCERAMIC
Left - UV Exposed, Right - Control

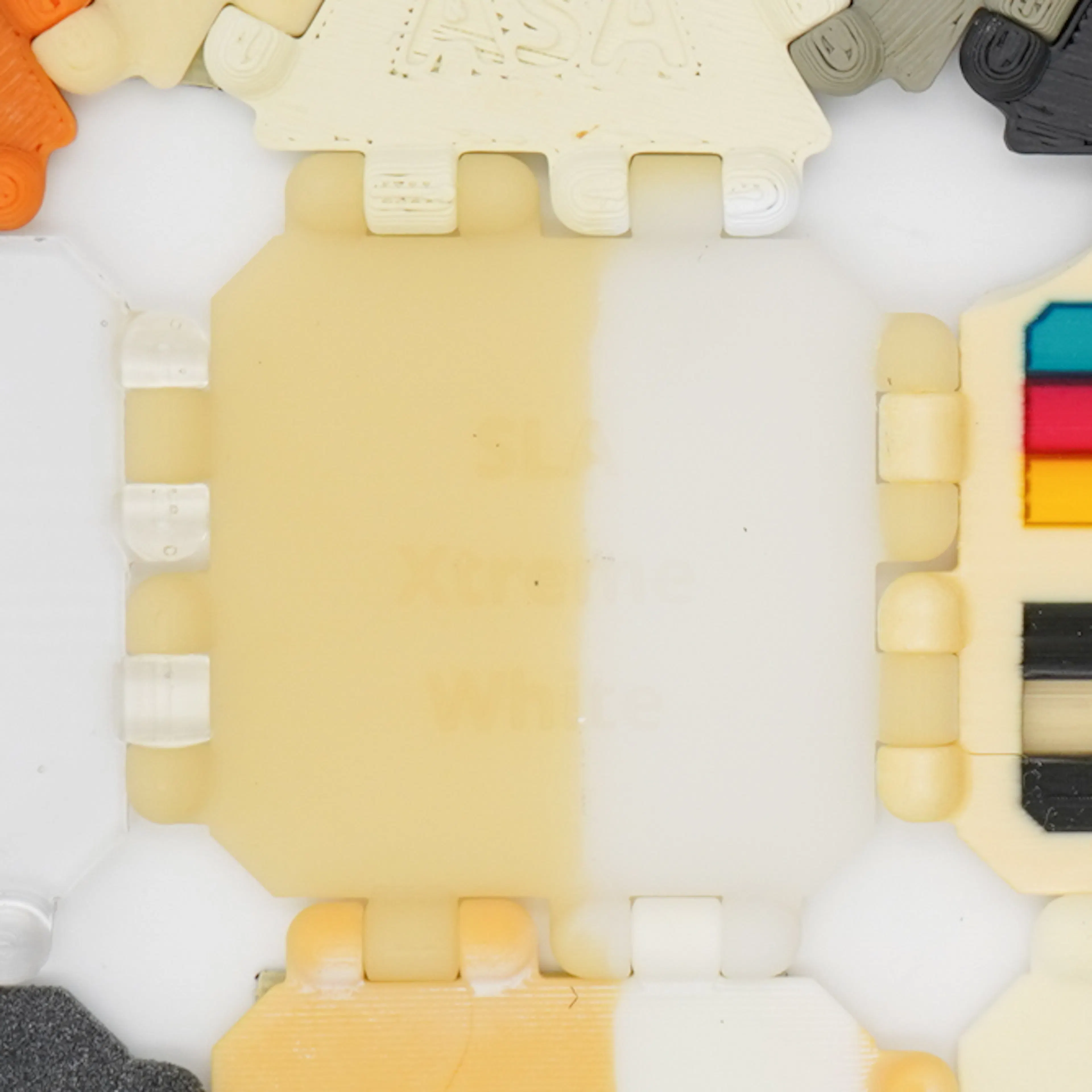

SLA Accura Xtreme White
Left - UV Exposed, Right - Control
HP MJF PP
Left - UV Exposed, Right - Control

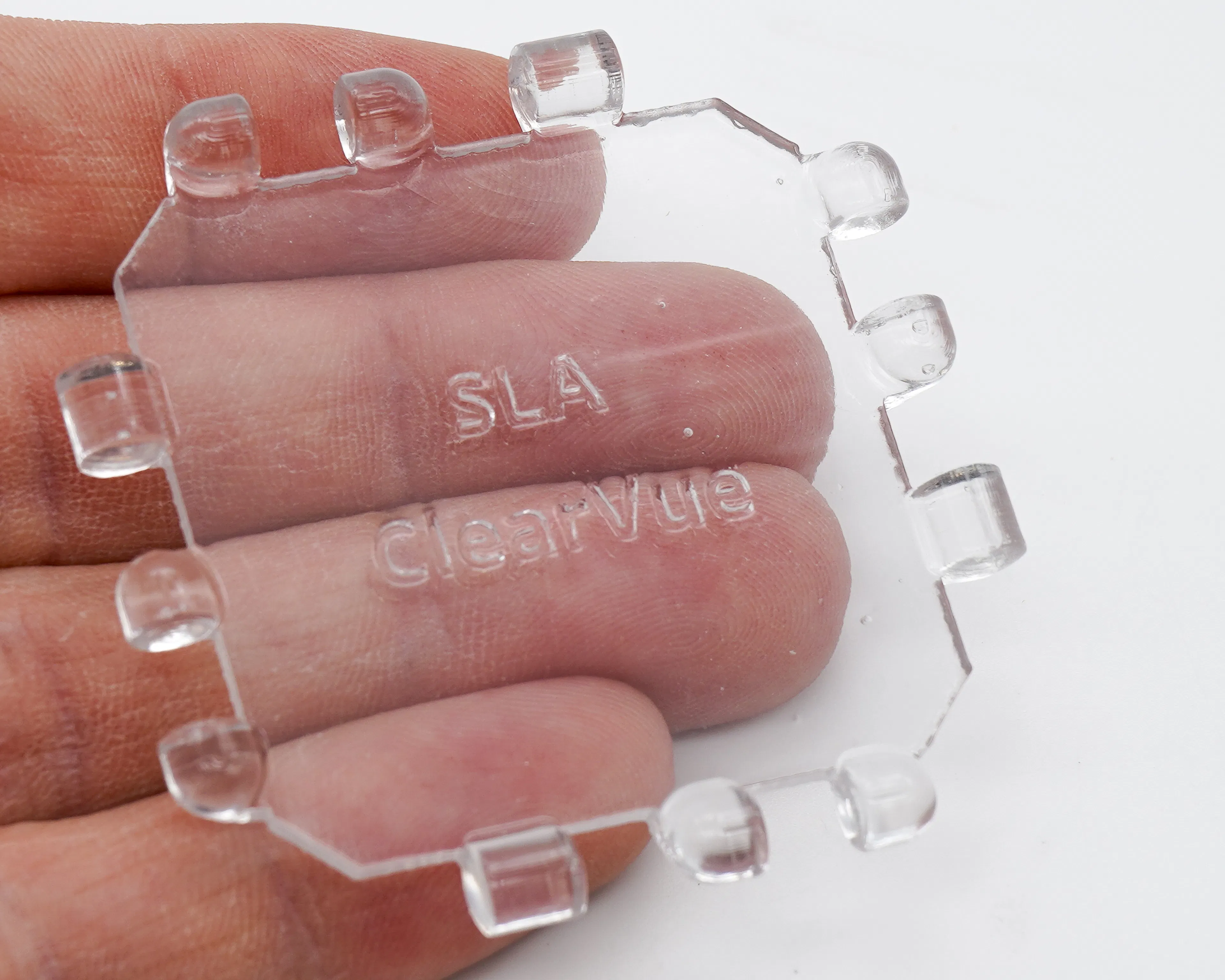

SLA Accura ClearVue, Quick Clear
Left - UV Exposed, Right - ControlMore Engineering Challenge Videos
